Roller Chain > More Roller Chains > Non-Standard Roller Chains

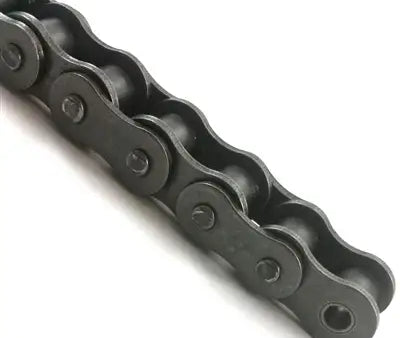

S525 Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: S525-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
S525 Roller Chain Features
S525 Roller Chain Specifications
S525 roller chain is a non-ANSI Standard S-Class chain that is manufactured for light to medium duty industrial applications. Our S525 chain is manufactured with heat-treated components for better durability and long-term performance, it is also supplied with a high-quality chain lube from the factory. Typically these chains come in 10ft boxes, 100ft reels, 250ft reels, or 500ft reels but custom lengths can be ordered upon request. We also supply a full line of high-quality S525 chain sprockets and accessories. For additional information or to get a quote please contact us.
S525 Chain Dimensions
- Chain Size: S525
- Pitch (P): 0.625"
- Roller Diameter (D): 0.400"
- Roller Width (W): 0.311"
- Link Plate Height (H): 0.591"
- Link Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Pin Length (A): 0.732"
- Tensile Strength: 7,165 LBS
- Maximum Working Load: 1,389 LBS
- Weight: 0.672 LBS/ FT
- Chain Size: S525
- Pitch (P): 0.625"
- Roller Diameter (D): 0.400"
- Roller Width (W): 0.311"
- Link Plate Height (H): 0.591"
- Link Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Pin Length (A): 0.732"
- Tensile Strength: 7,165 LBS
- Maximum Working Load: 1,389 LBS
- Weight: 0.672 LBS/ FT
