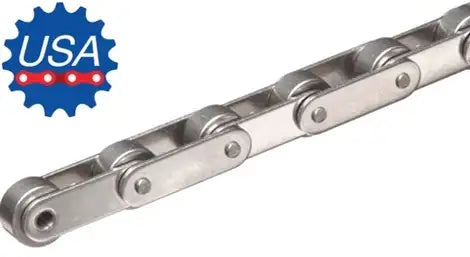

Premium C2082H Stainless Steel Roller Chain 10ft Box
Login to Request a Quote
Our premium C2082H stainless steel roller chain sets the bar for quality, performance, and chain life! This particular C2082H stainless chain is constructed with high-precision components made from superior alloy-quality 304-grade stainless steel. C2082HSS chain is a highly versatile chain size with a 2" pitch. It conforms to ANSI dimensional standards for interchangeability and features oversized rollers for effortless conveying across surfaces. The C2082H stainless chain is typically used for conveying applications within food-grade, abrasive, corrosive, high-heat, and low-temperature applications. We also supply C2082H stainless steel sprockets, chain guides, tools, and attachments. C2082HSS chain is standardly supplied as 10ft boxes, including one connecting link (master link), but reel lengths of 50ft or 100ft are also available. For more information or a quote on our premium C2082H stainless steel roller chain, contact our customer service team, and we will gladly assist you!
C2082H Stainless Steel Chain Dimensions
- Roller Chain Size: C2082HSS
- Chain Pitch (P): 2.000"
- Roller Width (R): 0.620"
- Roller Diameter (D): 1.125"
- Overall Width (W): 1.469"
- CL Overall Width (X): 1.669"
- Plate Height (H): 0.943"
- Pin Diameter (L): 0.311"
- Tensile Strength: 10,670 LBS
- Working Load: 396.8 LBS
- Weight: 2.37 LBS/ FT
- Roller Chain Size: C2082HSS
- Chain Pitch (P): 2.000"
- Roller Width (R): 0.620"
- Roller Diameter (D): 1.125"
- Overall Width (W): 1.469"
- CL Overall Width (X): 1.669"
- Plate Height (H): 0.943"
- Pin Diameter (L): 0.311"
- Tensile Strength: 10,670 LBS
- Working Load: 396.8 LBS
- Weight: 2.37 LBS/ FT
