Premium C2042 Stainless Steel Roller Chain 10ft Box
Login to Request a Quote

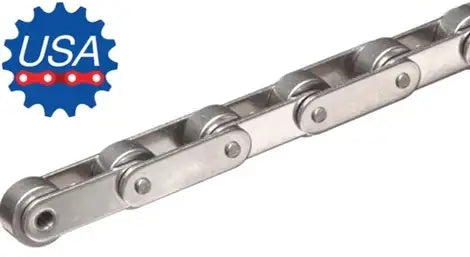

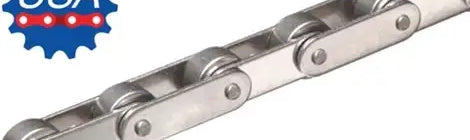

Premium C2042 stainless steel roller chain is a 1" pitch double-pitch chain with oversized "carrier" rollers that dimensionally conform to ANSI Standards. This particular C2042 stainless chain excels in performance, lifespan, and quality. The C2042SS chain is typically used for conveying applications within food-grade, abrasive, corrosive, high-heat, and low-temperature applications. More specifically, the C2042 stainless steel roller chain is constructed from high-quality 304-grade stainless steel, giving it unique capabilities outside of the standard carbon steel C2042 chain. We also supply C2042 stainless steel sprockets, chain guides, tools, and attachments. C2042SS chain is standardly supplied as 10ft boxes, including one connecting link (master link), but reel lengths of 50ft or 100ft are also available. For more information or to get a quote on our premium C2042 stainless steel roller chain, contact our customer service team, and we will gladly assist you!
C2042 Stainless Steel Chain Dimensions
- Roller Chain Size: C2042SS
- Chain Pitch (P): 1.000"
- Roller Width (R): 0.309"
- Roller Diameter (D): 0.625"
- Overall Width (W): 0.701"
- CL Overall Width (X): 0.854"
- Plate Height (H): 0.455"
- Pin Diameter (L): 0.156"
- Tensile Strength: 2,800 LBS
- Working Load: 98.9 LBS
- Weight: 0.58 LBS/ FT
- Roller Chain Size: C2042SS
- Chain Pitch (P): 1.000"
- Roller Width (R): 0.309"
- Roller Diameter (D): 0.625"
- Overall Width (W): 0.701"
- CL Overall Width (X): 0.854"
- Plate Height (H): 0.455"
- Pin Diameter (L): 0.156"
- Tensile Strength: 2,800 LBS
- Working Load: 98.9 LBS
- Weight: 0.58 LBS/ FT
