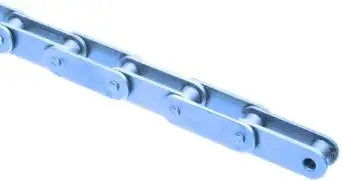

Coated John Deere AA21523 Chain - C2040 X 51 Links

This anti-corrosive coated C2040 planter chain replaces John Deere AA21523 chains and is 51 links long. It is manufactured dimensionally to ANSI B29.1 Standards but features heat-treated components, a high-performance solid roller design, and an anti-corrosive coating to prevent rust over time. We use a high-quality ANSI roller chain because lower quality roller chains can result in an erratic movement which would cause inconsistent seed spacing. Additionally, using a coated roller chain will prevent rust and will hold up longer than non-coated roller chains.

AA21523 Specifications

• Chain Size: C2040
• Length: 51-Links
• Tensile Strength: 3,970 LBS
• Pitch (P): 1.000"
• Roller Width (W): 0.312"
• Roller Diameter (R): 0.312"
• Plate Height (H): 0.463"
• Plate Thickness (T): 0.060"
• Pin Diameter (D): 0.156"
• Overall Width Including C/L (F): 0.689"

Helpful Tips:

• Always inspect your roller chain before operation
• Keep chains well lubricated to ensure optimal performance
• Never use a rusted and or stiff roller chain
