M2A127 Gear - M2A127 Metric Spur Gear
Note:
Custom Cut to Length Chain Also Available
SKU: N-7842-GE-M2A127
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
M2A127 Gear - M2A127 Metric Spur Gear Features
M2A127 Gear - M2A127 Metric Spur Gear Specifications

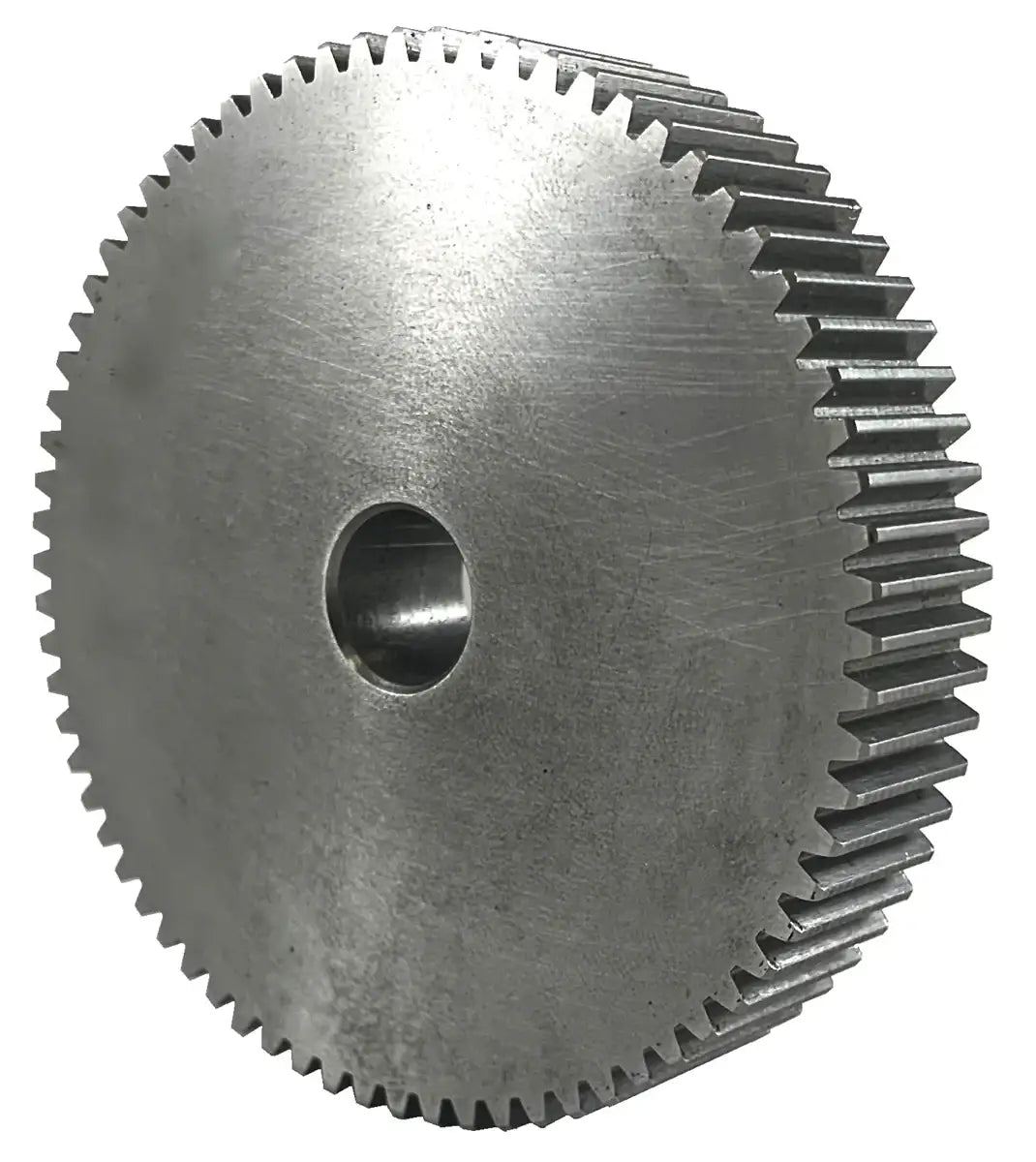

M2A127 spur gear is a module 2, 127-tooth plate type metric gear that is 258mm in diameter. Our M2A127 gear is manufactured using high-strength C1045 steel which is the optimal material for spur gears, it is manufactured to the standard metric dimensions so it interchanges with other brands, and can be supplied as a plain stock bore or finished out to a specific bore size upon request. We also supply metric gear rack for M2A127 gears, and high-grade gear oil to increase performance and longevity of the gear. For additional information or to get a quote on M2A127 metric spur gears please contact us as (407) 347-3519 or email sales@usarollerchain.com and we will be happy to assist you.
M2A127 Gear Dimensions
- Gear Size: M2A127
- Tooth Count: 127
- Dimension (De): 258mm
- Dimension (Dp): 254mm
- Dimension (D): 20mm
- Max Torque (Nm): 235.0
- Weight: 7.89 Kg
- Gear Size: M2A127
- Tooth Count: 127
- Dimension (De): 258mm
- Dimension (Dp): 254mm
- Dimension (D): 20mm
- Max Torque (Nm): 235.0
- Weight: 7.89 Kg
