M1B58 Gear - M1B58 Metric Spur Gear
Note:
Specific Bore Sizes Available Upon Request
SKU: N-7842-GE-M1B58
Only 0 left in stockItem is out of stock
Item is unavailable
M1B58 Gear - M1B58 Metric Spur Gear Features
M1B58 Gear - M1B58 Metric Spur Gear Specifications

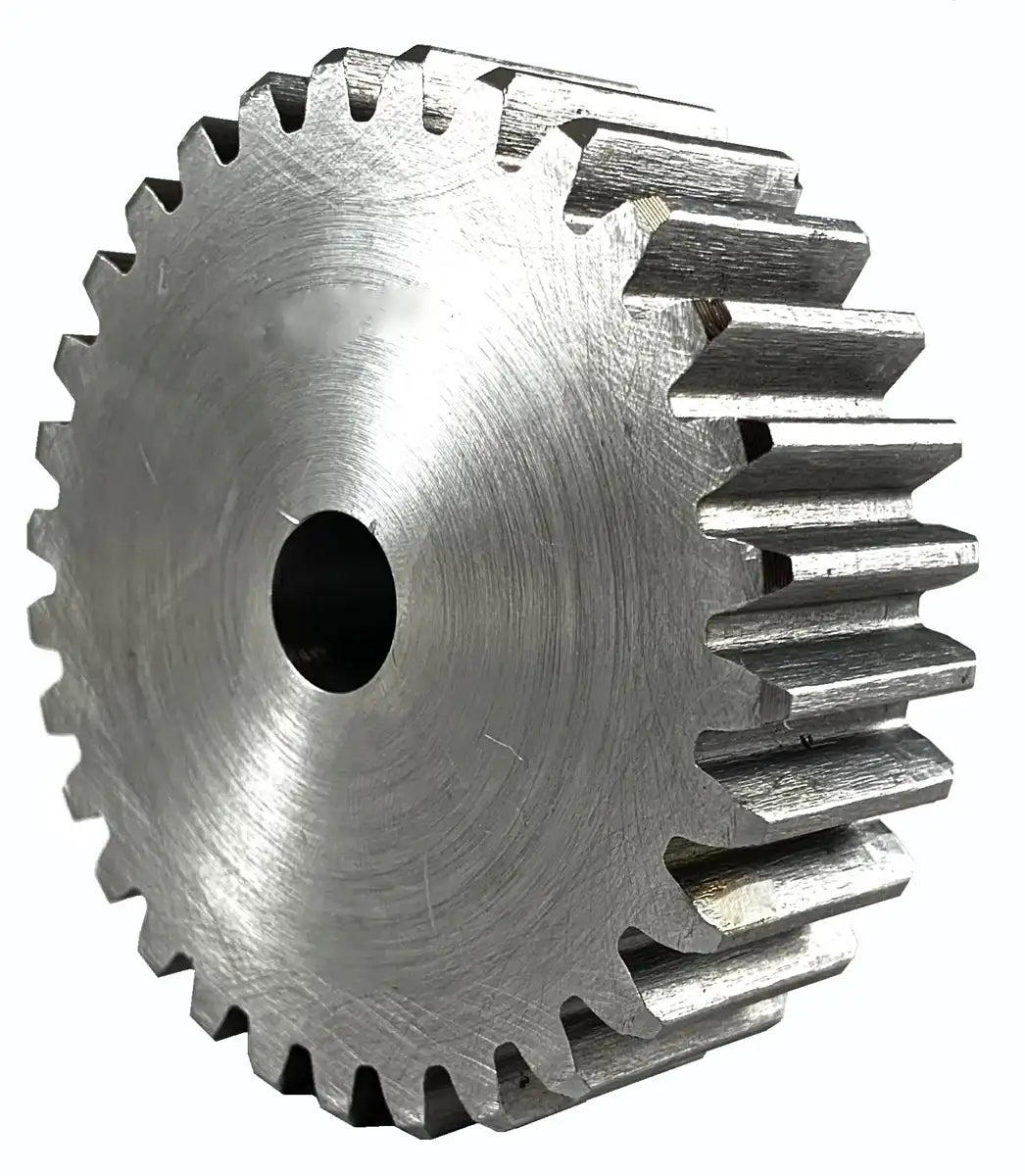

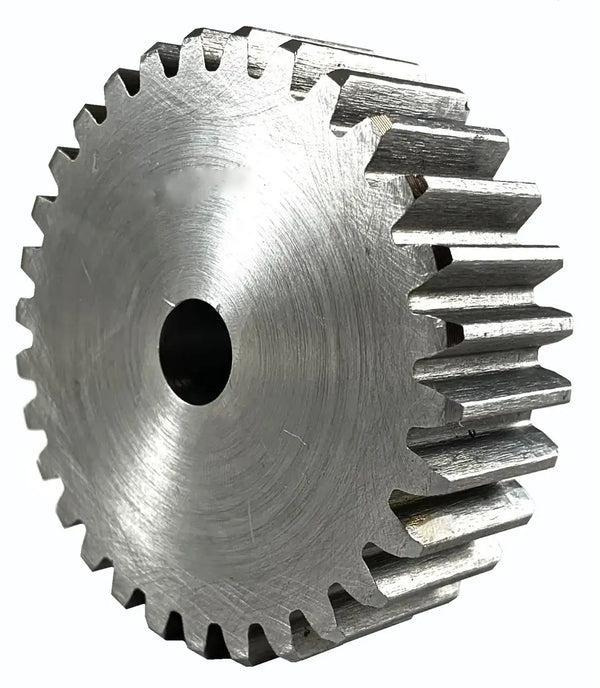

M1B58 spur gear is a module 1, 58-tooth B hub type metric gear that is 60mm in diameter. Our M1B58 gear is manufactured using high-strength C1045 steel which is the optimal material for spur gears, it is manufactured to the standard metric dimensions so it interchanges with other brands, and can be supplied as a plain stock bore or finished out to a specific bore size upon request. We also supply metric gear rack for M1B58 gears, and high-grade gear oil to increase performance and longevity of the gear. For additional information or to get a quote on M1B58 metric spur gears please contact us as (407) 347-3519 or email sales@usarollerchain.com and we will be happy to assist you.
M1B58 Gear Dimensions
- Gear Size: M1B58
- Tooth Count: 58
- Dimension (De): 60mm
- Dimension (Dp): 58mm
- Dimension (d): 40mm
- Dimension (D): 12mm
- Max Torque (Ncm): 1054
- Weight: 0.39 Kg
- Gear Size: M1B58
- Tooth Count: 58
- Dimension (De): 60mm
- Dimension (Dp): 58mm
- Dimension (d): 40mm
- Dimension (D): 12mm
- Max Torque (Ncm): 1054
- Weight: 0.39 Kg
