M1.5A72 Gear | M1.5A72 Metric Spur Gear
Note:
Specific Bore Sizes Available Upon Request
SKU: N-7842-GE-M15A72
Only 0 left in stockItem is out of stock
Item is unavailable
M1.5A72 Gear | M1.5A72 Metric Spur Gear Features
M1.5A72 Gear | M1.5A72 Metric Spur Gear Specifications

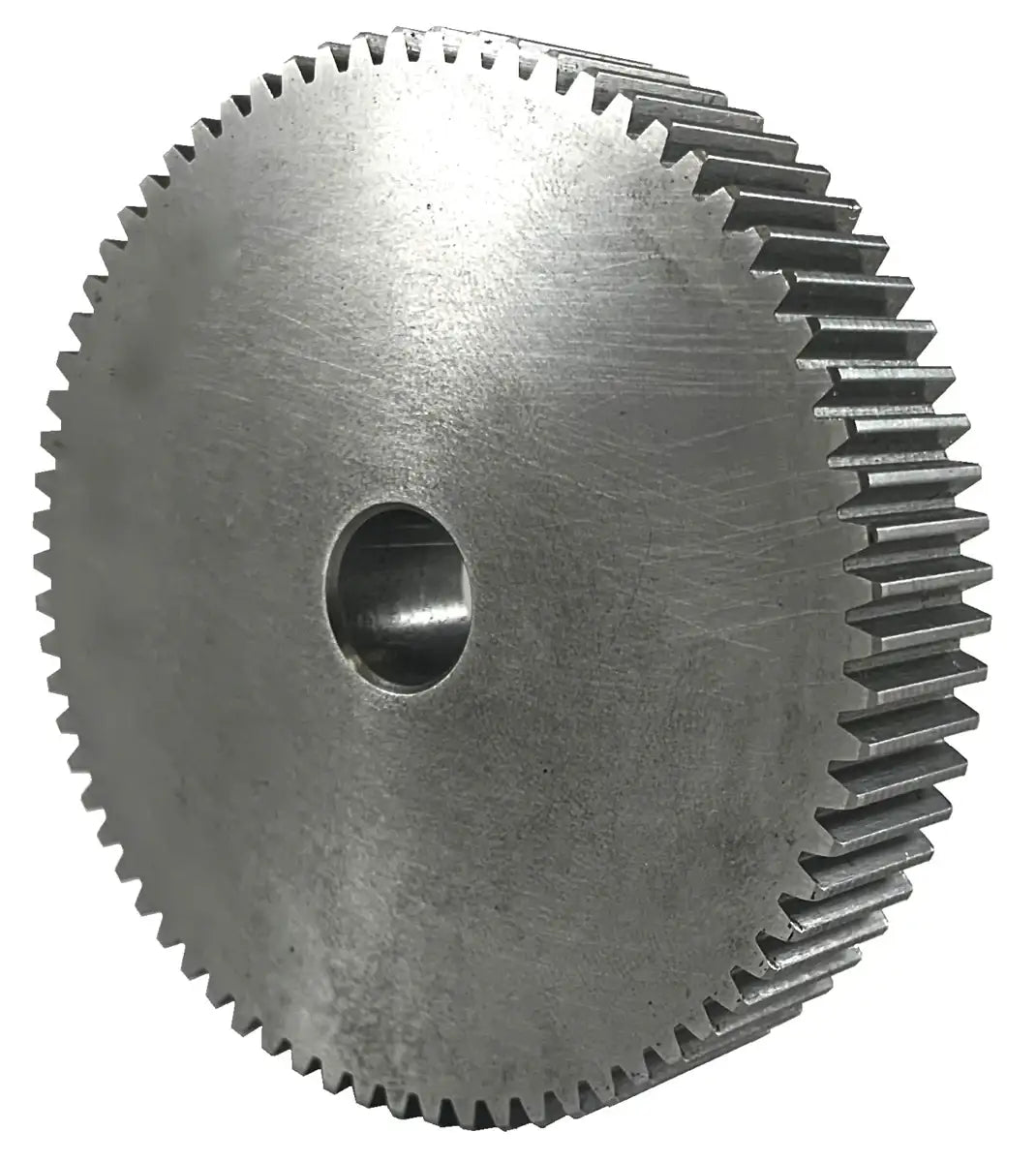

M1.5A72 spur gear is a module 1.5, 72-tooth plate type metric gear that is 111mm in diameter. Our M1.5A72 gear is manufactured using high-strength C1045 steel which is the optimal material for spur gears, it is manufactured to the standard metric dimensions so it interchanges with other brands, and can be supplied as a plain stock bore or finished out to a specific bore size upon request. We also supply metric gear rack for M1.5A72 gears, and high-grade gear oil to increase performance and longevity of the gear. For additional information or to get a quote on M1.5A72 metric spur gears please contact us as (407) 347-3519 or email sales@usarollerchain.com and we will be happy to assist you.
M1.5A72 Gear Dimensions
- Gear Size: M1.5A72
- Tooth Count: 72
- Dimension (De): 111.0mm
- Dimension (Dp): 108.0mm
- Dimension (D): 20mm
- Max Torque (Ncm): 557720
- Weight: 1.19 Kg
- Gear Size: M1.5A72
- Tooth Count: 72
- Dimension (De): 111.0mm
- Dimension (Dp): 108.0mm
- Dimension (D): 20mm
- Max Torque (Ncm): 557720
- Weight: 1.19 Kg
