MSR4019 K1 Attachment

Specialty Chain > Engineering Class Chains > Roller Conveyor Chain > MSR4019 Roller Chain

MSR4019 K1 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: MSR4019-K1-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715262873967" , "metafield_value":""}]
MSR4019 K1 Attachment Features
MSR4019 K1 Attachment Specifications
This MSR4019 K1 attachment is a premium high-strength attachment that is manufactured specifically for MSR4019 chain and can be assembled in any configuration needed. To get a quote for MSR4019 chain with K1 attachments or for more information please contact us and we will be happy to assist you!

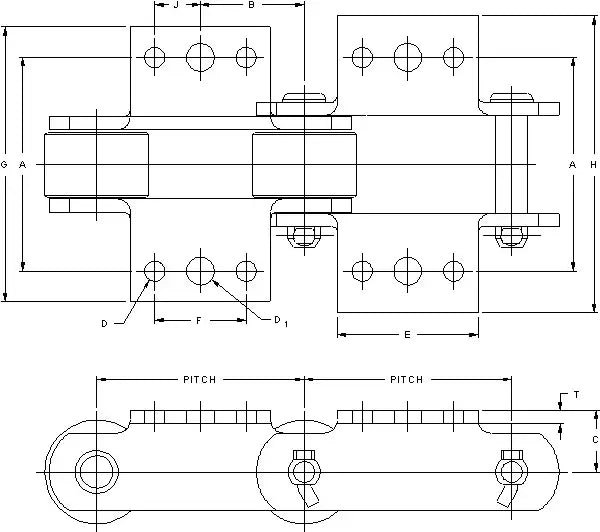

Dimensions:
MSR4019 K1 Attachment
  • Attachment #: MSR4019-K1
  • Pitch: 4.00"
  • Dimension (A): 2.75"
  • Dimension (B): 2.00"
  • Dimension (C): 0.88"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Bolt Diameter (D1): 0.38"
  • Hole Diameter (D1): 0.41"
  • Dimension (E): 2.50"
  • Dimension (F): 1.50"
  • Dimension (G): 3.75"
  • Dimension (H): 3.81"
  • Dimension (J): 0.25"
  • Dimension (T): 0.25"
  • Weight: 5.3 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Attachment #: MSR4019-K1
  • Pitch: 4.00"
  • Dimension (A): 2.75"
  • Dimension (B): 2.00"
  • Dimension (C): 0.88"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Bolt Diameter (D1): 0.38"
  • Hole Diameter (D1): 0.41"
  • Dimension (E): 2.50"
  • Dimension (F): 1.50"
  • Dimension (G): 3.75"
  • Dimension (H): 3.81"
  • Dimension (J): 0.25"
  • Dimension (T): 0.25"
  • Weight: 5.3 LBS/ FT
