MSR3013 A1 Attachment

Specialty Chain > Engineering Class Chains > Roller Conveyor Chain > MSR3013 Roller Chain

MSR3013 A1 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: MSR3013-A1-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715261530479" , "metafield_value":""}]
MSR3013 A1 Attachment Features
MSR3013 A1 Attachment Specifications
This MSR3013 A1 attachment is a premium high-strength attachment that is manufactured specifically for MSR3013 chain and can be assembled in any configuration needed. To get a quote for MSR3013 chain with A1 attachments or for more information please contact us and we will be happy to assist you!

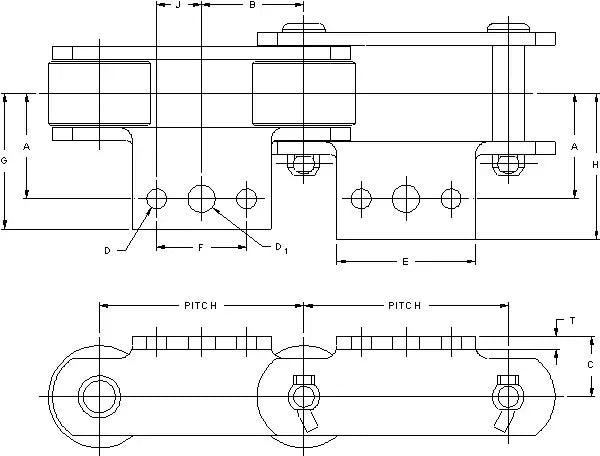

Dimensions:
MSR3013 A1 Attachment
  • Attachment #: MSR3013-A1
  • Pitch: 3.00"
  • Dimension (A): 1.47"
  • Dimension (B): 1.50"
  • Dimension (C): 0.81"
  • Bolt Diameter (D): 0.25"
  • Hole Diameter (D): 0.28"
  • Bolt Diameter (D1): 0.31"
  • Hole Diameter (D1): 0.34"
  • Dimension (E): 2.00"
  • Dimension (F): 1.06"
  • Dimension (G): 1.97"
  • Dimension (H): 2.16"
  • Dimension (J): 0.53"
  • Dimension (T): 0.19"
  • Weight: 4.5 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Attachment #: MSR3013-A1
  • Pitch: 3.00"
  • Dimension (A): 1.47"
  • Dimension (B): 1.50"
  • Dimension (C): 0.81"
  • Bolt Diameter (D): 0.25"
  • Hole Diameter (D): 0.28"
  • Bolt Diameter (D1): 0.31"
  • Hole Diameter (D1): 0.34"
  • Dimension (E): 2.00"
  • Dimension (F): 1.06"
  • Dimension (G): 1.97"
  • Dimension (H): 2.16"
  • Dimension (J): 0.53"
  • Dimension (T): 0.19"
  • Weight: 4.5 LBS/ FT
