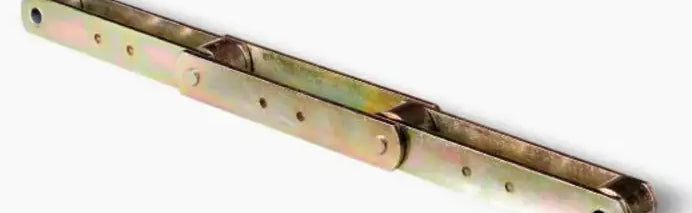

M630D400 Chain

M630D400 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: M630D400-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
M630-3400 A2 Attachment
M630-3400 A2 Attachment
Login
View full details
Description
Specification
M630D400 chain is a metric conveyor chain that is manufactured to ISO 1977 and DIN 8167 specifications. M series chains are some of the most universally used chains in the world, therefore this series caters for most mechanical handling requirements. This chain is supplied with an D style flanged roller but additional styles and roller types are available upon request. A few things that sets our M630D400 chain apart from others is the heat treated components, precision manufacturing, and proven long term durability.

M630D400 Chain Dimensions

M630D400 Chain
  • Chain Size: M630D400
  • Pitch (P): 400mm
  • Average Weight: 30.3KG/M
  • Roller Style: D
  • Roller Diameter: 170mm
  • Flange Thickness (G): 15mm
  • Pin Diameter (D6): 36mm
  • Overall Width (F1): mm
  • Dimension (F2): mm
  • Bushing Diameter (D45): mm
  • Dimension Between Sidebars (L): mm
  • Sidebar Thickness (S): mm
  • Sidebar Height (H): mm



Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M630D400 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com


  • Chain Size: M630D400
  • Pitch (P): 400mm
  • Average Weight: 30.3KG/M
  • Roller Style: D
  • Roller Diameter: 170mm
  • Flange Thickness (G): 15mm
  • Pin Diameter (D6): 36mm
  • Overall Width (F1): mm
  • Dimension (F2): mm
  • Bushing Diameter (D45): mm
  • Dimension Between Sidebars (L): mm
  • Sidebar Thickness (S): mm
  • Sidebar Height (H): mm
