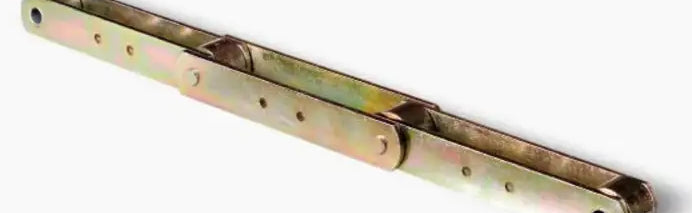

M28B63 Chain
M28B63 Chain
Note:
Custom Cut to Length Chain Also Available
Product Code: M28B63-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
M28B63 chain is a metric conveyor chain that is manufactured to ISO 1977 and DIN 8167 specifications. M series chains are some of the most universally used chains in the world, therefore this series caters for most mechanical handling requirements. This chain is supplied with an B style roller but additional styles and roller types are available upon request. A few things that sets our M28B63 chain apart from others is the heat treated components, precision manufacturing, and proven long term durability.
Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M28B63 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
M28B63 Chain Dimensions
Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M28B63 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
- Chain Size: M28B63
- Pitch (P): 63mm
- Average Weight: 1.43KG/M
- Roller Style: B
- Roller Diameter: 15mm
- Pin Diameter (D6): 7mm
- Overall Width (F1): 36mm
- Dimension (F2): 20mm
- Bushing Diameter (D45): 10mm
- Dimension Between Sidebars (L): 18mm
- Sidebar Thickness (S): 3mm
- Sidebar Height (H): 20mm
