L505SS Block Chain - Laminated
Note:
Custom Cut to Length Chain Also Available
SKU: L505SS-BLOCKCHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
L505SS Block Chain - Laminated Features
L505SS Block Chain - Laminated Specifications
L505SS blockchain is manufactured with alternate block links (inside link) and pin links (outside link). Though it has a simple design it is a highly effective chain and is used in applications all around the world. Specifically, the L505SS block chain is the laminated construction style, has a 1" pitch, and has a block width of 0.38". It is intended for use in light-load, low speed conveying systems and has a length tolerance of 0" - 1/16" per foot. To increase the lifespan of L505SS chain a chain guide is recommended to be used (which we also supply), this reduces friction and reduces the catenary load on sprockets. For additional information or to get a quote on L505SS block chain, sprockets, or chain guide, please contact us.

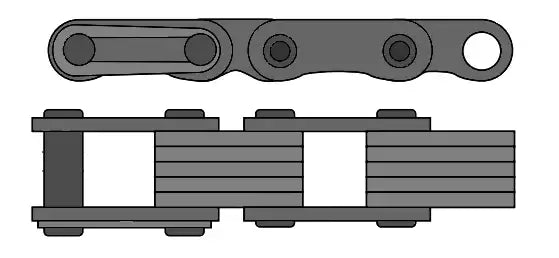

L505SS Block chain Dimensions
- Size: L-505SS
- Style: Laminated
- Pitch: 1.00"
- Block Width (W): 0.38"
- Pin to Head Center Line (A): 0.31"
- Pin End to Center Line (B): 0.39"
- Overall Chain Width (C): 0.61"
- Link Plate Thickness (T): 0.08"
- Pin Diameter (E): 0.19"
- Recommended Maximum Working Load (0-100 FPS): 300 LBS
- Recommended Maximum Working Load (101-200 FPS): 273 LBS
- Recommended Maximum Working Load (201-300 FPS): 214 LBS
- Average Weight Per Foot: 0.4 LBS
- Size: L-505SS
- Style: Laminated
- Pitch: 1.00"
- Block Width (W): 0.38"
- Pin to Head Center Line (A): 0.31"
- Pin End to Center Line (B): 0.39"
- Overall Chain Width (C): 0.61"
- Link Plate Thickness (T): 0.08"
- Pin Diameter (E): 0.19"
- Recommended Maximum Working Load (0-100 FPS): 300 LBS
- Recommended Maximum Working Load (101-200 FPS): 273 LBS
- Recommended Maximum Working Load (201-300 FPS): 214 LBS
- Average Weight Per Foot: 0.4 LBS
