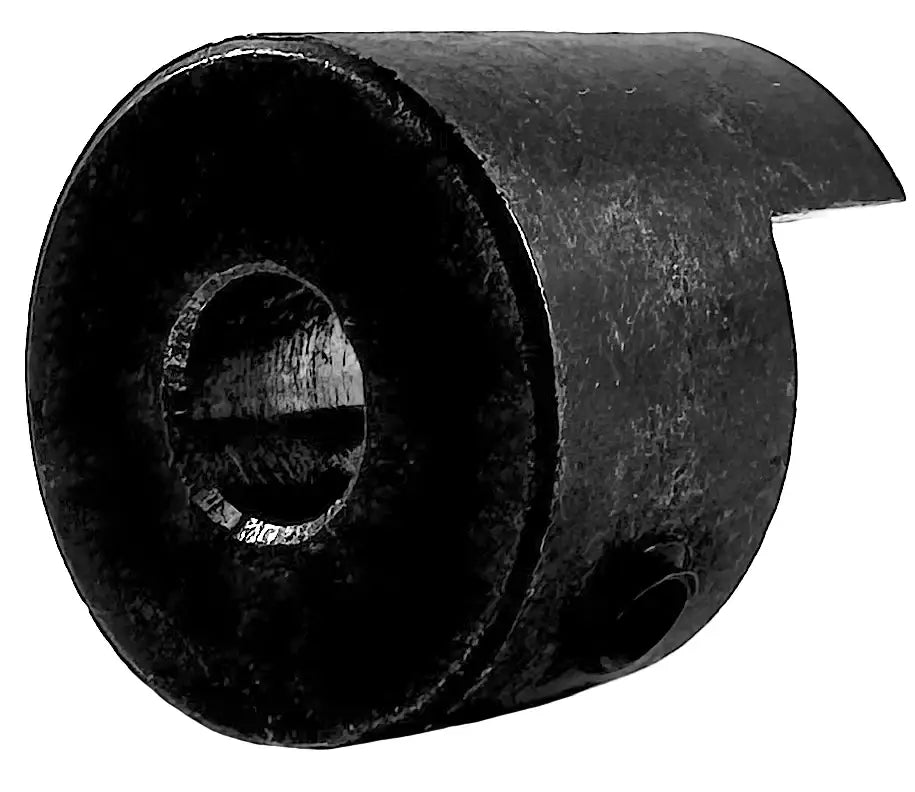

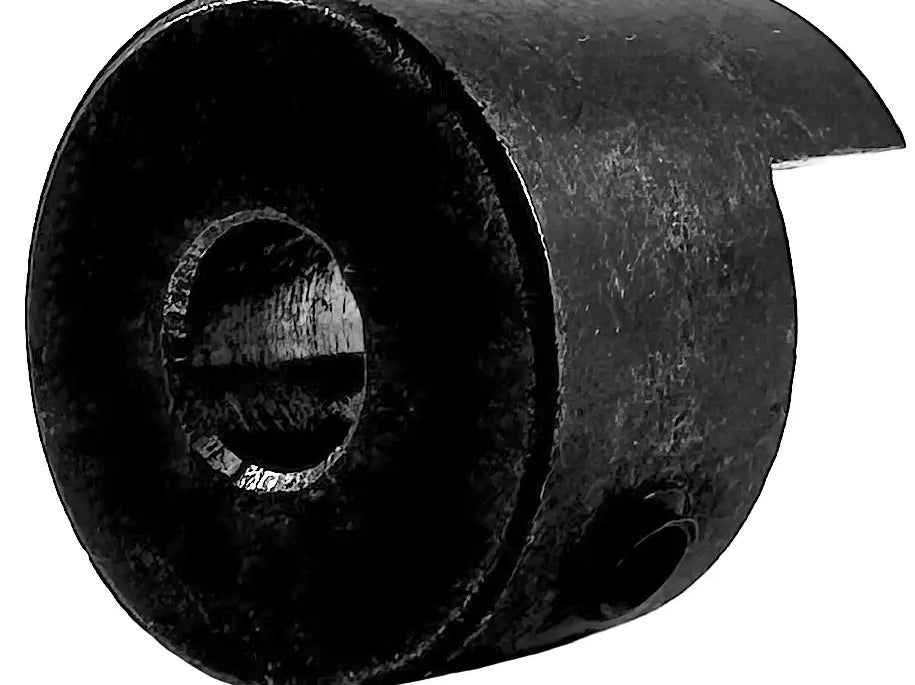

L075 Coupling Half 12mm No-Key L070 Hub

The L075 coupling half with a 12mm bore (with no key) is also commonly called an L075 coupling hub. The compact yet robust design of this 12mm bore L075 coupling half makes it highly versatile across a broad spectrum of applications, including; pumps, blowers, compressors, mixers, motion control (servo), and more!. Depending on the insert type used, a complete L075 coupling assembly is capable of optimal operation with an angular misalignment from 0.5 to 1.0 degrees and a parallel misalignment of 0.10" to 0.15". This advantage is due to the greater radial softness. Additionally, L075 couplings utilize a no metal-on-metal design (excluding bronze inserts), drastically improving their wear life compared to other coupling types. At USA Roller Chain, we pride ourselves in supplying high-quality industrial power transmission components, and our L075 coupling halves with a 12mm bore and no key is no exception. Contact our customer support team for additional information or bulk quantity pricing; we will gladly assist you!

L075 Coupling Half 12mm Dimensions

• Part #: L075
• Type: 1"
• Bore Size: 12mm
• Hub Dia. (A): 1.750"
• Overall Length (B): 2.126"
• Distance Between Flanges (C): 0.480"
• Length Thru Bore (D): 0.820"
• Weight: 0.95 LBS
• Set Screw Size: 12mm-20UNCX12mm
• Set Screw Quantity: 2
