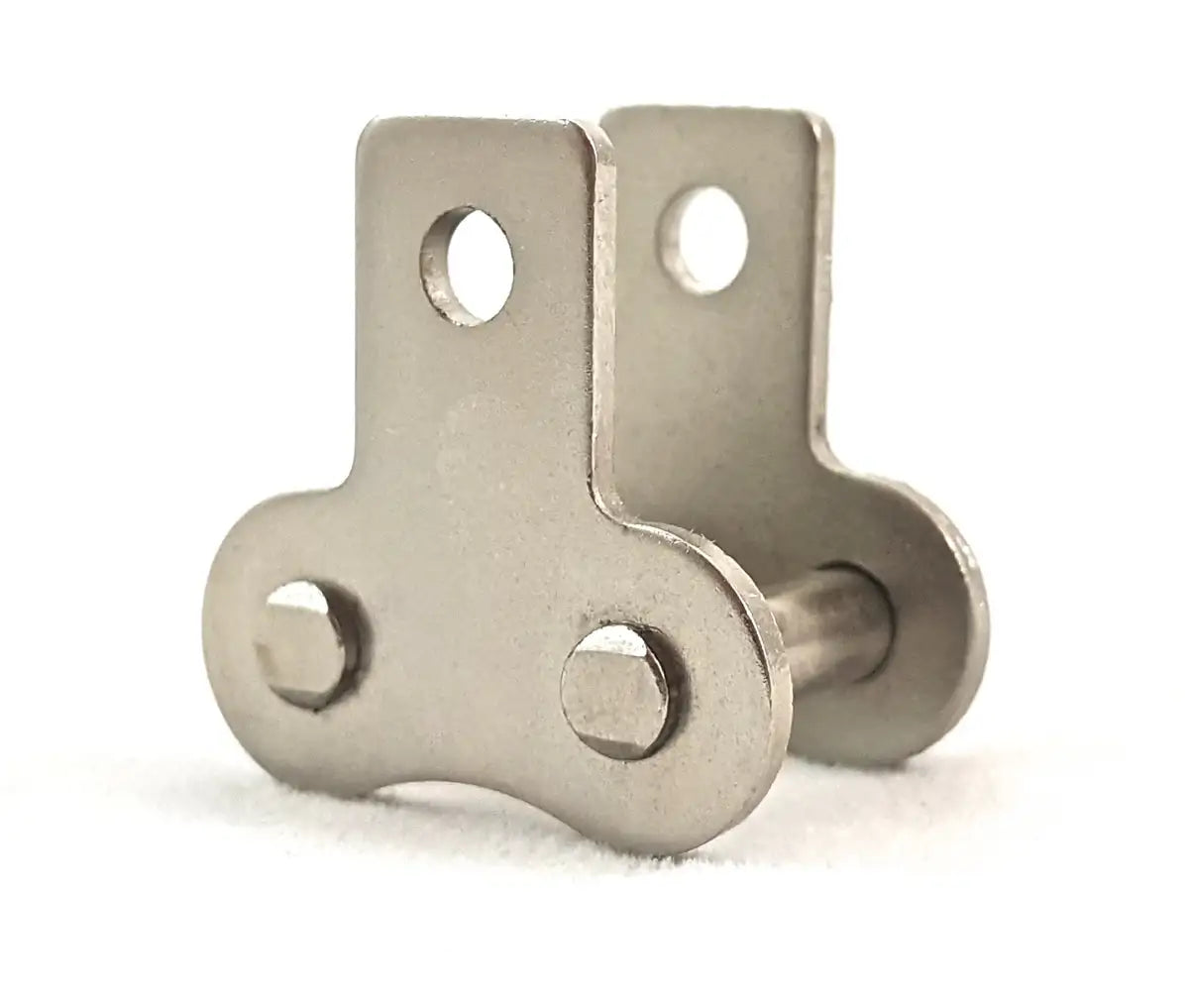

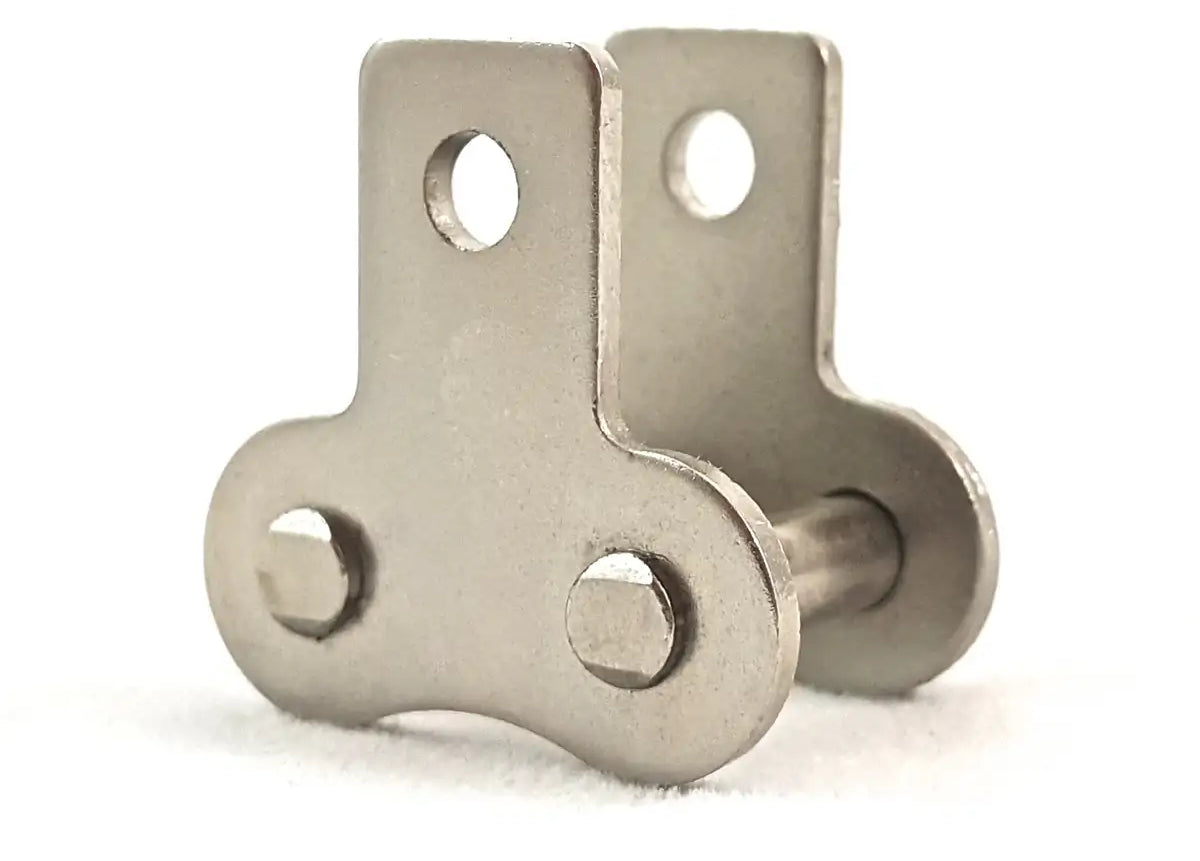

Iwis #50 Nickel Plated A-1 Roller Chain Connecting (Master) Link
Note:
Custom Cut to Length Chain Also Available
SKU: I-50NP-A-1-CONNECTING-LINK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Iwis #50 Nickel Plated A-1 Roller Chain Connecting (Master) Link Features
Iwis #50 Nickel Plated A-1 Roller Chain Connecting (Master) Link Specifications
IWIS #50 Nickel Plated A-1 Attachment Connecting Link is apart of the Premium JWIS line up of IWIS brand chains. Nickel Plated A-1 Attachment connecting links are standardly supplied as spring-clip style and are a bent, one side, one hole attachment with a shiny, premium nickel plated finish to prevent corrosion. The components that go into this attachment link were nickel plated before assembly and then inspected to ensure a full coverage and a smooth surface for the longest working life possible and to prevent chemical attack along with stress cracking. Additionally the components are manufactured with only high-quality heat-treated and case-hardened steel with extreme precision and accuracy to ensure the best in class working life, fatigue, and overall durability. This #50 nickel plated A-1 Attachment Connecting Link combines superb quality and the best in class German engineering with high strength components to create an attachment that will last long, preform greatly, and have extremely high strength. We supply IWIS #50 Nickel Plated A-1 Attachment Connecting Links at really great prices and they are normally in-stock. Additionally if you're needing #50 nickel plated roller chain with nickel plated A-1 attachments already assembled onto the chain we can do that in any configuration needed, and within an industry leading assembly time. This attachment fully meets all ANSI standards so it will assemble easily onto #50 nickel plated roller chain and mesh correctly with ANSI #50 sprockets. We also offer a full line of high quality ANSI #50 sprockets #50 Nickel Plated Roller Chain at really great prices. For more information or to get a quote on IWIS #50 Nickel Plated A-1 Attachment Connecting Links please contact us and we will be happy to assist you!
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer " Here "!
Dimensions:
Attachment #: #50NP A-1 Pitch (P): 5/8" Width (E): 3/8" Roller Diameter (D1): 0.40" Pin Diameter (D2): 0.20" Dimension (T): 0.08" Dimension (F1): 0.51" Dimension (F2): 0.59" Dimension (A1): 0.97" Dimension (A2): 0.63" Dimension (F3): 0.56" Dimension (D3): 0.20" Dimension (G): 0.41"
Email:
Attachment #: #50NP A-1 Pitch (P): 5/8" Width (E): 3/8" Roller Diameter (D1): 0.40" Pin Diameter (D2): 0.20" Dimension (T): 0.08" Dimension (F1): 0.51" Dimension (F2): 0.59" Dimension (A1): 0.97" Dimension (A2): 0.63" Dimension (F3): 0.56" Dimension (D3): 0.20" Dimension (G): 0.41"
