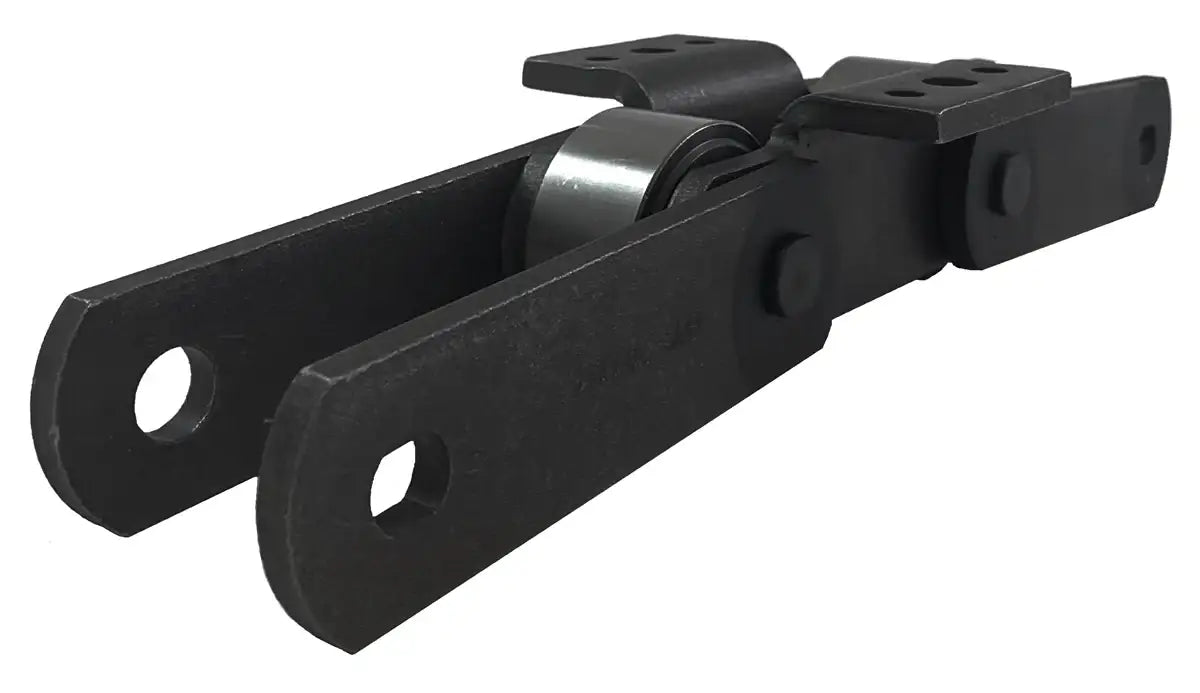

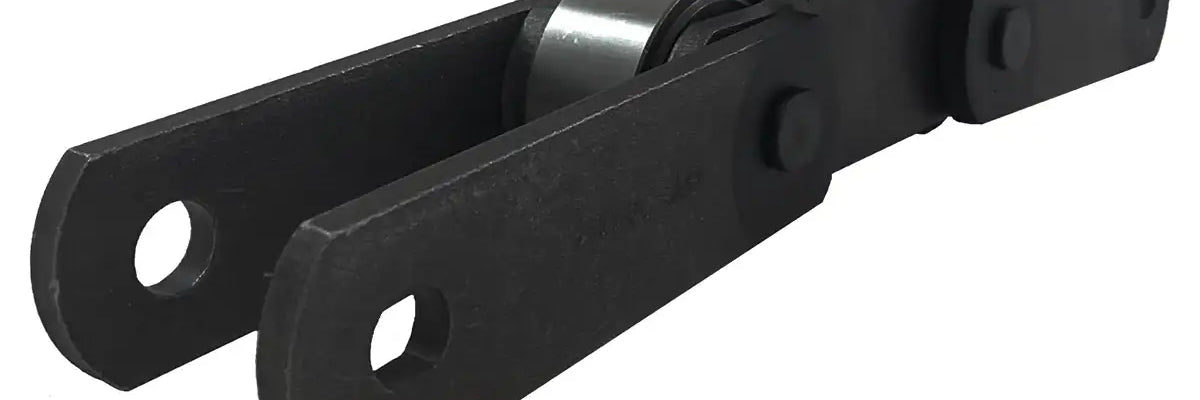

HZ09060 K6 Marsh Buggy Chain | Marsh Buggy Track Chain

HZ09060 K6 marsh buggy chain is found in marsh buggy excavating and transporting equipment all around the world in various wetlands and marshes. The chain is designed with extended tabs on the outer links for slats to attach to, the assembly creates what is called a track chain and is similar to the common tank track design. Our HZ09060 K6 marsh buggy chain is manufactured utilizing premium quality steel that has been undergone numerous manufacturing techniques and processes to ensure maximum life and durability of the chain. We also supply HZ09060 K6 pitch marsh buggy chain sprockets as well as extra replacement parts. For More information or to get a quote on HZ09060 K6 pitch marsh buggy chain please contact us and we will be happy to assist you!

HZ09060 K6 Marsh Buggy Chain Dimensions

• Chain Size: HZ09060 K6
• Dimension (F): 110mm
• Dimension (W): 150mm
• Dimension (d4): 13.5mm
• Dimension (d5): 16mm
• Dimension (K): 14mm
• Dimension (E1): 60mm
• Dimension (E2): 113mm
• Dimension (E3): 165mm
• Dimension (E): 221mm
• Dimension (H): 49mm
• Dimension (P): 152.4mm
• Dimension (b1): 37.7mm
• Dimension (D): 69.85mm
• Dimension (d): 18.9mm
• Dimension (L1): 43.4mm
• Dimension (L2): 51.8mm
• Dimension (h): 50.8mm
• Dimension (t/ T): 9.5mm
• Weight: 22.2 kG/ M
