HEB40 Bushing With 2-7/8" Bore
Note:
Custom Cut to Length Chain Also Available
SKU: HEB40-2-78-BUSHING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HEB40 Bushing With 2-7/8" Bore Features
HEB40 Bushing With 2-7/8" Bore Specifications

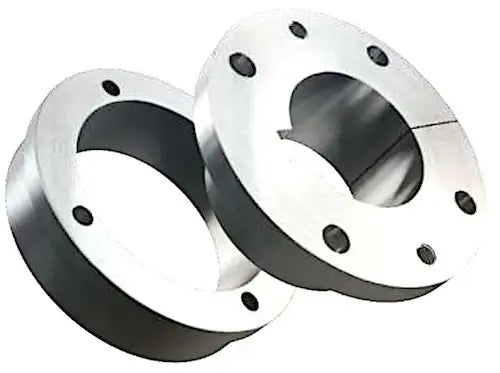

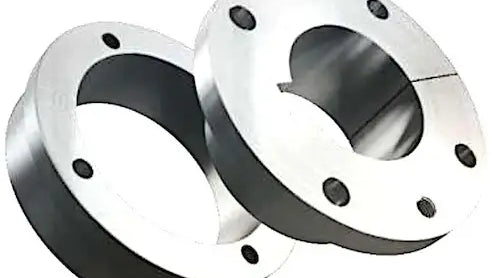

HEB40 bushing with a 2-7/8" bore provides a high degree of compression for maximum transfer of torque. The bushing is precision manufactured from high-grade steel for easy installation and maximum bushing life. Our HEB40 bushing with a 2-7/8" bore directly interchanges with other brands and is designed to go within HE40 and HE40WH hubs. Our superior HEB40 bushing with a 2-7/8" bore is ideal for use within conveyor pulley and end disc applications. For additional information or to get a quote on our HEB40 bushing with a 2-7/8" bore, contact our customer service team, and we will gladly assist you.
HEB40 Bushing X 2-7/8" Dimensions
- Bushing Size: HEB40
- Bore Size: 2-7/8"
- Flange Diameter (E): 7.500"
- Flange Width (F): 1.000"
- Total Length (G): 2.925"
- Bolt Circle (H): 6.313"
- # of Bolts: 4
- Bolt Size: 5/8"
- Maximum Bolt Torque: 1,110 In/ LBS
- Bushing Size: HEB40
- Bore Size: 2-7/8"
- Flange Diameter (E): 7.500"
- Flange Width (F): 1.000"
- Total Length (G): 2.925"
- Bolt Circle (H): 6.313"
- # of Bolts: 4
- Bolt Size: 5/8"
- Maximum Bolt Torque: 1,110 In/ LBS
