HEB30 Bushing With 55mm Bore
Note:
Custom Cut to Length Chain Also Available
SKU: HEB30-55MM-BUSHING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HEB30 Bushing With 55mm Bore Features
HEB30 Bushing With 55mm Bore Specifications

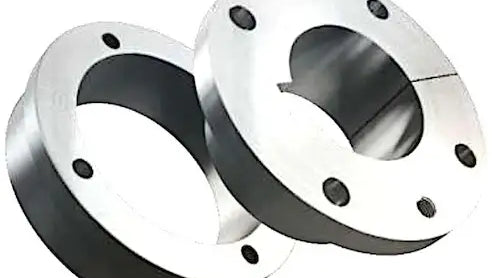

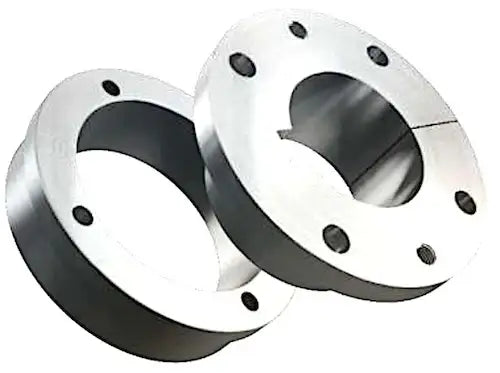

This HEB30 Bushing with a 55mm bore is a precision bushing designed to go into an HE30 or HE30WH weld-on hub. This bushing is designed for conveyor pulley and end disc applications. Additionally, this HEB30 bushing with a 55mm bore directly interchanges with other brands. At USA Roller Chain, we pride ourselves on providing excellent quality HEB30 bushings with a 55mm bore and HE30 weld-on hubs. For additional information or to get a quote on our HEB30 bushing with a 55mm bore, contact our customer service team, and we will gladly assist you.
HEB30 Bushing X 55mm Dimensions
- Bushing Size: HEB30
- Bore Size: 55mm
- Flange Diameter (E): 5.625"
- Flange Width (F): 0.875"
- Total Length (G): 2.200"
- Bolt Circle (H): 4.688"
- # of Bolts: 4
- Bolt Size: 1/2"
- Maximum Bolt Torque: 510 In/ LBS
