Premium HE25 Hub
Note:
Custom Cut to Length Chain Also Available
SKU: HE25-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium HE25 Hub Features
Premium HE25 Hub Specifications

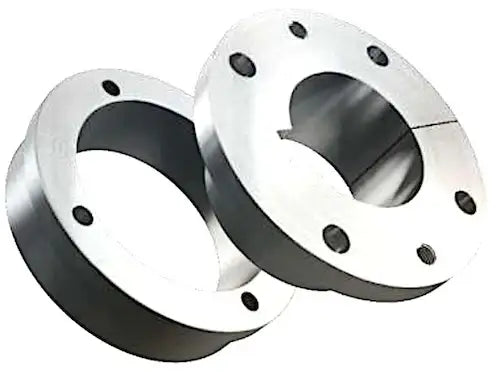

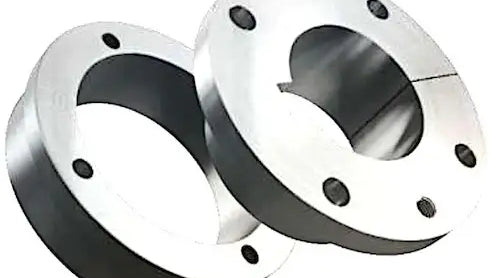

Our premium HE25 hub is precision machined from high-grade steel for maximum durability and easy installation; the HE25 hub is designed for HEB25 bushings that we supply and is optimally designed for conveyor pulleys and end discs. For additional information or to get a quote on our premium HE25 hub or bushings, contact our customer service team, and we will gladly assist you!
HE25 Hub Dimensions
- Part #: HE25
- Dimension (L2): 0.05"
- Dimension (D2): 4.70"
- Dimension (T1): 3.306"
- Dimension (T2): 3.113"
- Tap Hole: 3/8" - 16 (Four Holes)
- Part #: HE25
- Dimension (L2): 0.05"
- Dimension (D2): 4.70"
- Dimension (T1): 3.306"
- Dimension (T2): 3.113"
- Tap Hole: 3/8" - 16 (Four Holes)
