H87 Chain

Note: Custom Cut to Length Chain Also Available
SKU: H87-CHAIN
Only 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715168371055" , "metafield_value":""}]
H87 Chain Features
H87 Chain Specifications

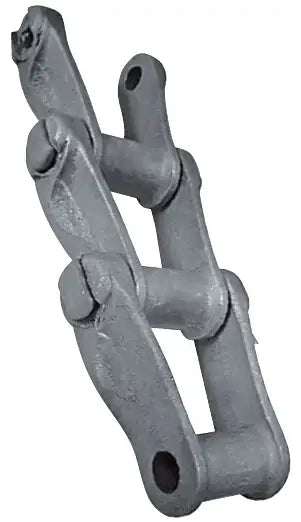

H87 chain is manufactured out of Pearlitic Malleable iron, and is a common in-stock item. This H87 chain is a heavy duty, extremely durable, and high quality mill duty chain with a tensile strength of 33,750 LBS. Our H-Series chains are manufactured to perform and hold up in heavy drives, transfer conveyors, as well as abrasive atmospheres. The sidebars of H87 chain feature a strengthened cross section providing an added benefit of a wear surface to prolong chain service life when operating in troughs or over floors and slider beds. In addition to the H87 chain we also have a full line of attachments and H87 sprockets for sale. For more information or o get a quote please contact us and we will be happy to assist you.

Dimensions:
H87 Chain
  • Chain Size: H87
  • Pitch: 4.00"
  • Pin Diameter (E): 0.625"
  • Height of Sidebar (F): 1.38"
  • Diameter of Barrel (H): 1.38"
  • Maximum Allowable Sprocket Face (A): 1.50"
  • Bearing Length (X): 2.38"
  • Maximum Recommended Working Load: 4,450 LBS
  • Overall Width Cottered (C2): 4.38"
  • Overall Width Riveted (C1): 4.19"
  • Head of Pin to Center Line (J): 2.06"
  • End of Pin To Center Line Cottered (K): 2.12"
  • End of Pin To Center Line Riveted (L): 2.12"
  • Average Ultimate Strength: 33,750 LBS
  • Links Per 10ft: 30
  • Weight Per ft: 6.5 LBS
  • Note: Available In Riveted and Cottered Construction
