H78 G19 Attachment

Specialty Chain > Engineering Class Chains > More Engineer Class Chains > H Class Chains > H78 Mill Chain

H78 G19 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: H78-G19-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715167715695" , "metafield_value":""}]
H78 G19 Attachment Features
H78 G19 Attachment Specifications

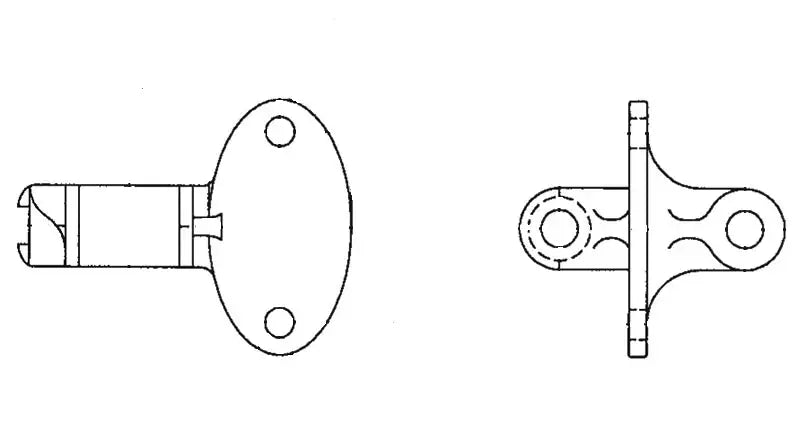

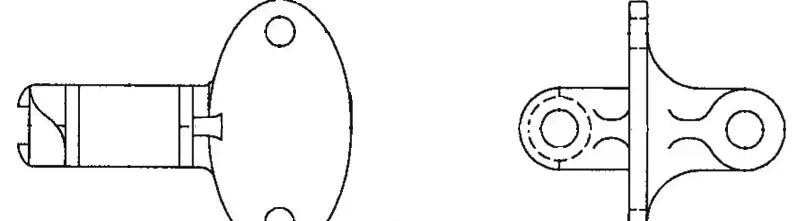

This H78 G19 attachment is a high quality precision attachment that is a common stock item, and can be assembled onto H78 chain in any configuration needed or sold as an individual H78 G-19 attachment link. For more information or to get a quote on H78 chain with G19 attachments or attachment links please contact us and we will be happy to assist you.

Dimensions:

  • Attachment Size: H78 G19
  • Pitch: 2.609"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Dimension (G): 2.75"
  • Dimension (J): 1.75"
  • Dimension (K): 1.62"
  • Dimension (L): 1.25"
  • Dimension (M): 2.62"
  • Dimension (N): 2.19"
  • Dimension (P): 3.50"
  • Dimension (T): 0.25"
  • Weight: 5.9 LBS/ FT
