H-3284 Adapter Sleeve Features
H-3284 Adapter Sleeve Specifications

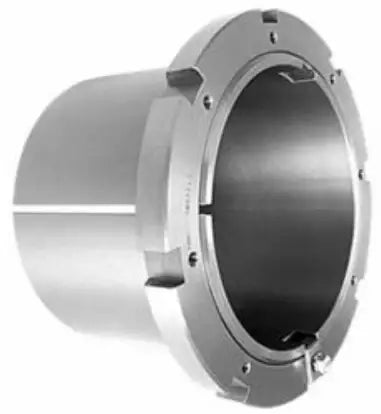

This H-3284 Adapter Sleeve features a 400 millimeter (15-3/4") bore and is a premium quality, high precision adapter sleeve. H-3284 adapter sleeves are supplied with the accompanying nut, lock plate, and lock plate bolt. This adapter sleeve is made for use with 232 series spherical bearings, which we also offer a full line of. For more information or to get a quote on the adapter sleeve or spherical bearings, please contact us and we will be happy to assist you.

Dimensions:
H-3284 Adapter Sleeve
  • Part Number: H-3284
  • Dimension (N): 400mm (15-3/4")
  • Dimension (H): 420mm
  • Dimension (L): 352mm
  • Dimension (D): 540mm
  • Dimension (C): 70mm
  • Dimension (W): 85mm
  • Nut Size: HM3184
  • Lock Plate Size: MS3184
  • Lock Plate Bolt: M16 X 30
  • Weight: 94 KG

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: H-3284
  • Dimension (N): 400mm (15-3/4")
  • Dimension (H): 420mm
  • Dimension (L): 352mm
  • Dimension (D): 540mm
  • Dimension (C): 70mm
  • Dimension (W): 85mm
  • Nut Size: HM3184
  • Lock Plate Size: MS3184
  • Lock Plate Bolt: M16 X 30
  • Weight: 94 KG
