C2040 Roller Chain

Roller Chain > More Roller Chains > Double Pitch Roller Chain > C2040 Conveyor Chain

General Duty Plus C2040 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$44.99
SKU: GDP-C2040-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715158442351" , "metafield_value":""}]
General Duty Plus C2040 Roller Chain - 10ft Box Features
General Duty Plus C2040 Roller Chain - 10ft Box Specifications
General Duty Plus C2040 roller chain is manufactured to out-last and out-perform standard C2040 roller chains by being manufactured using higher precision components and higher quality components. This roller chain dimensionally fully meets all ANSI Standards so it will operate on standard C2040 sprockets just like other chains. C2040 chain typically comes in 10ft boxes including one connecting link each, however we do offer 50ft reels, 100ft reels, and specific cut to length strands per request. For more information or to submit a large-quantity quote please contact us and we will be happy to assist you!

Dimensions:
General Duty Plus C2040 Roller Chain - 10ft Box
  • Chain Size: C2040
  • Pitch (P): 1.000"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.312"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.754"
  • Tensile Strength: 3,750 LBS
  • Weight: 0.34 LBS/ FT

Important Note:

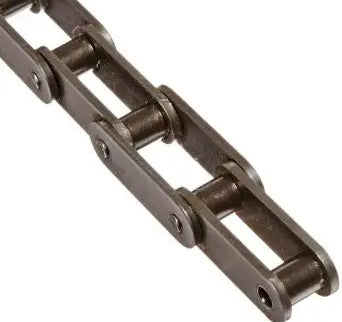

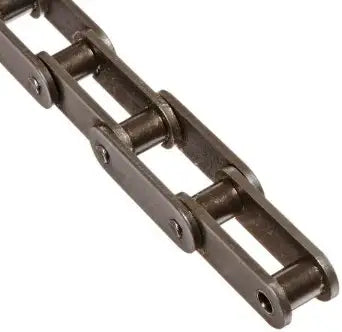

When looking for C2040 roller chain (photo below on the left) it is important, not to mix it up with C2042 roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2040".
General Duty Plus C2040 Roller Chain - 10ft BoxVS.General Duty Plus C2040 Roller Chain - 10ft Box



Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!
  • Chain Size: C2040
  • Pitch (P): 1.000"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.312"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.754"
  • Tensile Strength: 3,750 LBS
  • Weight: 0.34 LBS/ FT
