#35-3 General Duty Plus Stainless-Steel Roller Chain
SKU: GDP-35-3SS-10FT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
#35-3 General Duty Plus Stainless-Steel Roller Chain Description/Features
#35-3 General Duty Plus Stainless-Steel Roller Chain Specifications

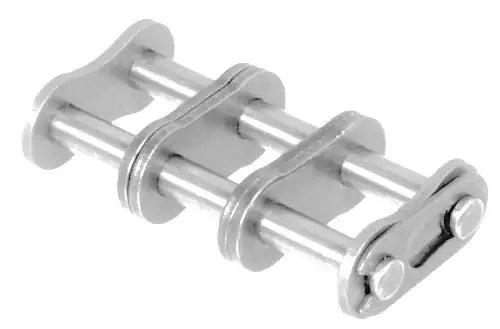

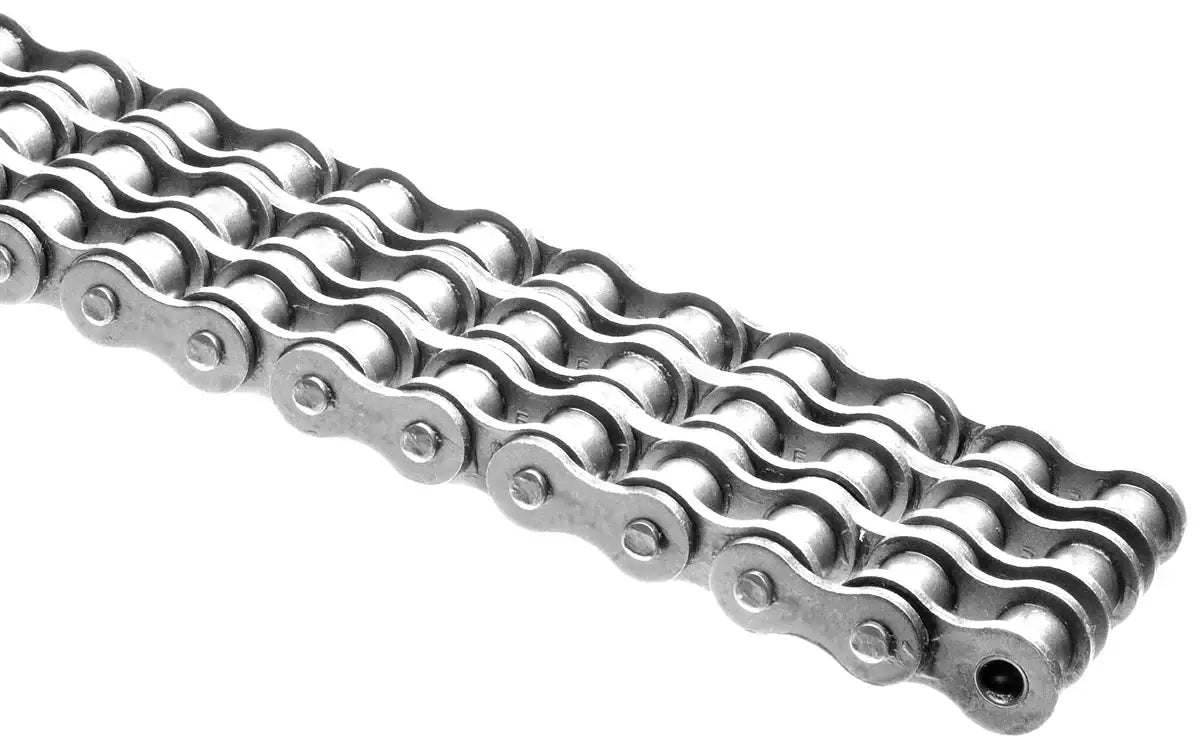

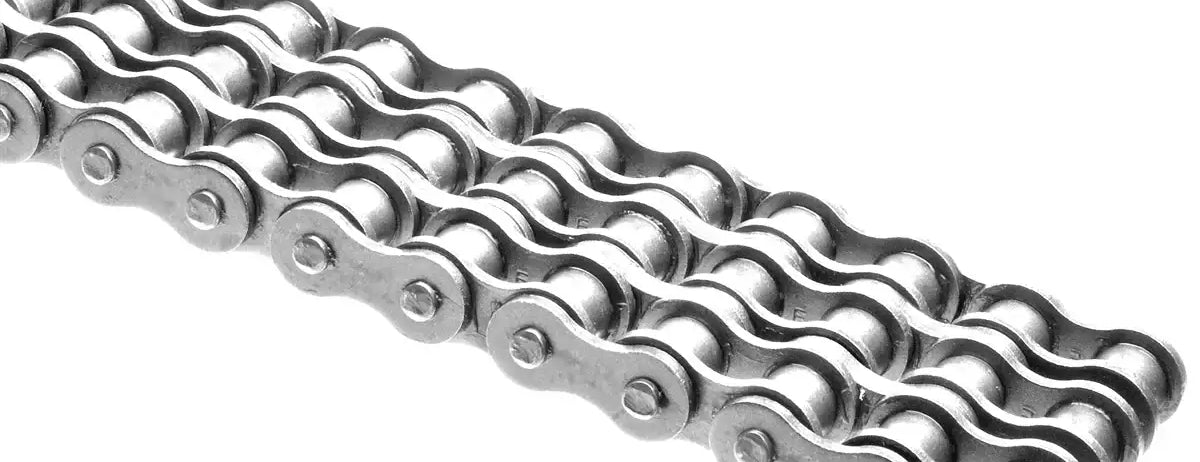

This #35-3 triple strand stainless steel roller chain is commonly supplied in 10ft boxes including one connecting link per box. If alternative lengths are needed please give us a call, (407) 347-3519. This chain is constructed entirely of 304-grade stainless steel. Doing this creates a stainless steel roller chain that can operate in harsh climates, low-temperature climates, and high-temperature climates. This stainless steel roller chain is a General Duty Plus quality roller chain.
- Chain Size: #35-3 SS
- **NOTE: ALL DIMENSIONS ARE GIVEN IN INCHES**
- Pitch (P): 0.375
- Roller Width (W): 0.188
- Roller Diameter (R): 0.200
- Link Plate Height (H): 0.340
- Link Plate Thickness (T): 0.050
- Pin Diameter (D): 0.141
- Overall Chain Width (F): 1.258
- Specifications Met: ANSI Standards
- Chain Size: #35-3 SS
- **NOTE: ALL DIMENSIONS ARE GIVEN IN INCHES**
- Pitch (P): 0.375
- Roller Width (W): 0.188
- Roller Diameter (R): 0.200
- Link Plate Height (H): 0.340
- Link Plate Thickness (T): 0.050
- Pin Diameter (D): 0.141
- Overall Chain Width (F): 1.258
- Specifications Met: ANSI Standards
