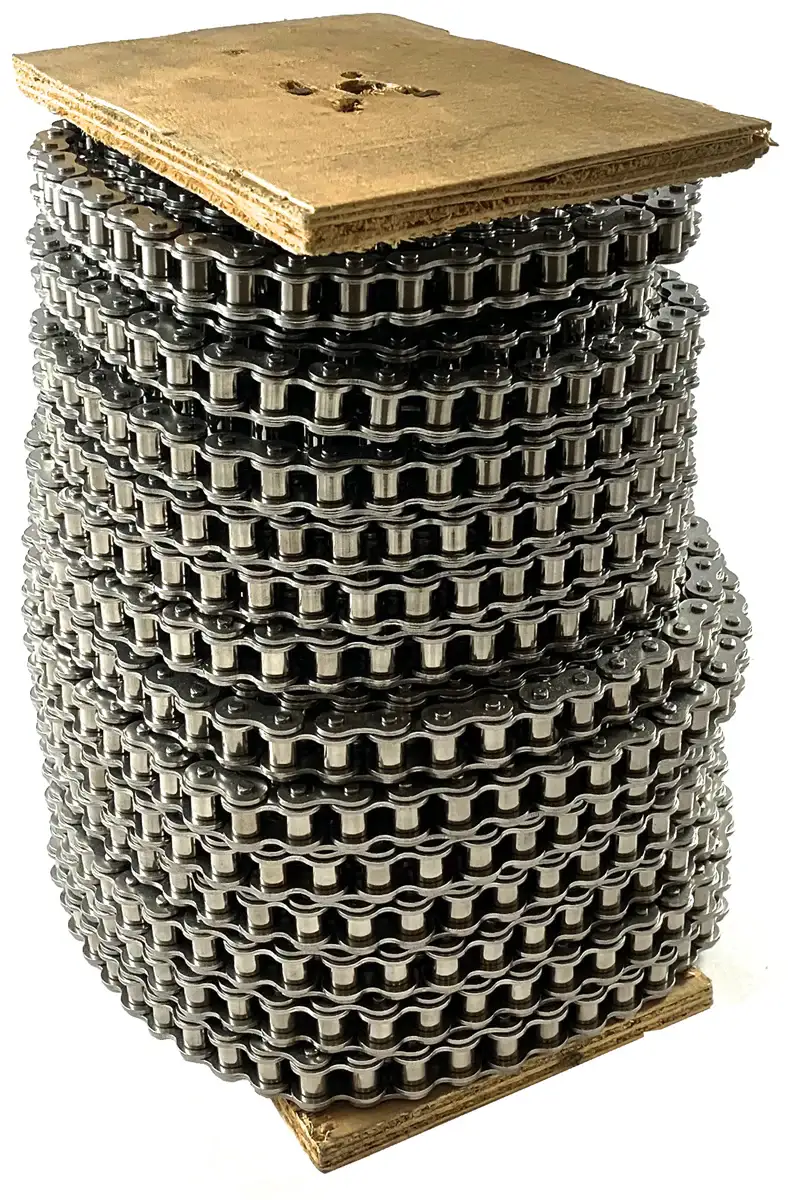

Economy Plus #50SS Stainless Steel Roller Chain - 50ft Reel
Note:
Custom Cut to Length Chain Also Available
SKU: ECO-50SS-50FT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Economy Plus #50SS Stainless Steel Roller Chain - 50ft Reel Features
Economy Plus #50SS Stainless Steel Roller Chain - 50ft Reel Specifications
Economy Plus #50 stainless steel roller chain is manufactured in accordance with ANSI B29 Standards and is made from an anti-corrosive 304-grade stainless steel. Being supplied on a 50ft reel makes it possible to make cut-to-length strands. The 50ft reel of Economy Plus #50SS is made for general and light-duty industrial applications. For more information or stainless steel sprockets please contact us and we will be happy to assist you.
#50 Stainless Steel Dimensions
- Size: 50SS
- Pitch (P): 0.625"
- Roller Diameter (D1): 0.400"
- Width Between Inner Plates (B1): 0.375"
- Pin Diameter (D2): 0.208"
- Pin Length (LR): 0.86"
- Pin Length (LC): 1.01"
- Inner Plate Height (H2): 0.59"
- Plate Thickness (T): 0.080"
- Tensile Strength: 3,779 LBS
- Weight: 0.7 LBS/ FT
- Size: 50SS
- Pitch (P): 0.625"
- Roller Diameter (D1): 0.400"
- Width Between Inner Plates (B1): 0.375"
- Pin Diameter (D2): 0.208"
- Pin Length (LR): 0.86"
- Pin Length (LC): 1.01"
- Inner Plate Height (H2): 0.59"
- Plate Thickness (T): 0.080"
- Tensile Strength: 3,779 LBS
- Weight: 0.7 LBS/ FT
