50 Stainless Steel Roller Chain | ANSI 50SS Chain
50 Stainless Steel Roller Chain | ANSI 50SS Chain
Note:
Custom Cut to Length Chain Also Available
Product Code: ECO-50SS-10FT
Shipping calculated at checkout.
Couldn't load pickup availability

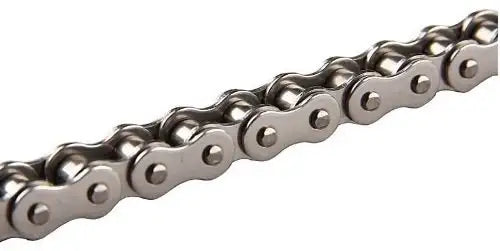

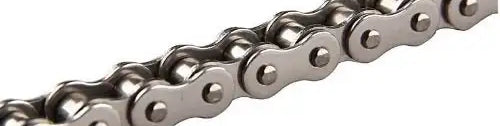

ANSI 50 Stainless Steel Roller Chain is an anti-corrosive and extremely versatile 5/8" pitch 304-Grade 50SS chain. What sets our stainless steel roller chain apart from others isn't just a "tensile strength/ breaking load" but the quality of stainless steel utilized within the chain, precision manufacturing, and extensive processes done at the plant-level to produce a stainless steel chain at an economical price point with great overall performance. What makes a stainless steel roller chain so versatile isn't just the anti-corrosive aspect, but the ability to operate in a broader spectrum of temperatures and application types. Besides a 10ft box, we also supply this chain in a 50ft reel or 100ft reel.
304 Stainless Steel Composition:
Carbon - 0.080%
Manganese - 2.000%
Phosphorus - 0.045%
Sulfur - 0.030%
Silicon - 0.750%
Chromium -18.000% - 20.000%
Nickel - 8.000% - 10.500%
Aluminum - 0.100%
Chain Temperature Range: -200° to + 400°
Download The 50SS Chain Data Page
Additional Upgrades or Options:
Because out 50SS chain is manufactured under the American National Standards Institute (ANSI) B29.1 dimensional specifications it runs on standard sprockets and directly interchanges with other ANSI chains. The below charts show our standard 50 stainless steel roller chain sprockets.
A-Plate 50SS Sprockets:
304 Stainless Steel Composition:
Carbon - 0.080%Manganese - 2.000%Phosphorus - 0.045%Sulfur - 0.030%Silicon - 0.750%Chromium -18.000% - 20.000%Nickel - 8.000% - 10.500%Aluminum - 0.100%Chain Temperature Range: -200° to + 400°50SS Roller Chain Dimensions
- Size: 50SS
- Pitch (P): 0.625"
- Roller Diameter (D1): 0.400"
- Width Between Inner Plates (B1): 0.375"
- Pin Diameter (D2): 0.208"
- Pin Length (LR): 0.86"
- Pin Length (LC): 1.01"
- Inner Plate Height (H2): 0.59"
- Plate Thickness (T): 0.080"
- Tensile Strength: 3,779 LBS
- Weight: 0.7 LBS/ FT
Download The 50SS Chain Data PageAdditional Upgrades or Options:
Because out 50SS chain is manufactured under the American National Standards Institute (ANSI) B29.1 dimensional specifications it runs on standard sprockets and directly interchanges with other ANSI chains. The below charts show our standard 50 stainless steel roller chain sprockets.
50 Stainless Steel Sprockets
B-Hub 50SS Sprockets:|
Size
|
Tooth Count
|
Outside Diameter
|
Type
|
Stock Bore
|
Maximum Recommended Bore
|
Hub Diameter
|
Length Thru Bore
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|
| 50B8SS | 8 | 1.884" | B | 5/8" | 5/8" | 1-1/8" | 1" | 0.25 |
| 50B9SS | 9 | 2.093" | B | 5/8" | 3/4" | 1-3/8" | 1" | 0.36 |
| 50B10SS | 10 | 2.300" | B | 5/8" | 7/8" | 1-9/16" | 1" | 0.50 |
| 50B11SS | 11 | 2.500" | B | 5/8" | 1" | 1-3/4" | 1" | 0.60 |
| 50B12SS | 12 | 2.710" | B | 5/8" | 1-1/4" | 1-61/64" | 1" | 0.70 |
| 50B13SS | 13 | 2.910" | B | 5/8" | 1-5/16" | 1-7/8" | 1" | 0.80 |
| 50B14SS | 14 | 3.110" | B | 5/8" | 1-7/16" | 2-1/8" | 1" | 1.00 |
| 50B15SS | 15 | 3.320" | B | 5/8" | 1-1/2" | 2-3/8" | 1" | 1.30 |
| 50B16SS | 16 | 3.520" | B | 5/8" | 1-3/4" | 2-1/4" | 1" | 1.50 |
| 50B17SS | 17 | 3.720" | B | 5/8" | 1-7/8" | 2-11/16" | 1" | 1.80 |
| 50B18SS | 18 | 3.920" | B | 5/8" | 1-7/8" | 2-7/8" | 1" | 2.00 |
| 50B19SS | 19 | 4.120" | B | 5/8" | 1-3/4" | 2-1/2" | 1" | 2.23 |
| 50B20SS | 20 | 4.320" | B | 3/4" | 1-3/4" | 3" | 1" | 2.30 |
| 50B21SS | 21 | 4.520" | B | 3/4" | 2" | 3" | 1" | 2.42 |
| 50B22SS | 22 | 4.720" | B | 3/4" | 2" | 3" | 1" | 2.54 |
| 50B23SS | 23 | 4.920" | B | 3/4" | 2" | 3" | 1" | 2.67 |
| 50B24SS | 24 | 5.120" | B | 3/4" | 2" | 3" | 1-1/4" | 3.38 |
| 50B25SS | 25 | 5.320" | B | 3/4" | 2" | 3" | 1-1/4" | 3.42 |
| 50B26SS | 26 | 5.520" | B | 3/4" | 2" | 3" | 1-1/4" | 3.57 |
| 50B28SS | 28 | 5.920" | B | 3/4" | 2" | 3" | 1-1/4" | 3.88 |
| 50B30SS | 30 | 6.320" | B | 3/4" | 2-1/4" | 3-1/4" | 1-1/4" | 4.54 |
| 50B32SS | 32 | 6.721" | B | 3/4" | 2-1/4" | 3-1/4" | 1-1/4" | 4.96 |
| 50B35SS | 35 | 7.320" | B | 3/4" | 2-1/4" | 3-1/4" | 1-1/4" | 5.44 |
| 50B36SS | 36 | 7.519" | B | 3/4" | 2-1/4" | 3-1/4" | 1-1/4" | 5.64 |
| 50B40SS | 40 | 8.320" | B | 3/4" | 2-1/4" | 3-1/4" | 1-1/4" | 6.50 |
| 50B45SS | 45 | 9.310" | B | 3/4" | 2-1/2" | 3-3/4" | 1-1/4" | 8.50 |
| 50B48SS | 48 | 9.911" | B | 1" | 2-1/2" | 3-3/4" | 1-1/4" | 9.28 |
| 50B54SS | 54 | 11.106" | B | 1" | 2-1/2" | 3-3/4" | 1-1/4" | 11.00 |
| 50B60SS | 60 | 12.300" | B | 1" | 2-1/2" | 3-3/4" | 1-1/4" | 14.00 |
|
Size
|
Tooth Count
|
Outside Diameter
|
Weight (LBS)
|
|---|---|---|---|
| 50A13SS | 13 | 2.910" | 0.42 |
| 50A14SS | 14 | 3.110" | 0.50 |
| 50A15SS | 15 | 3.320" | 0.54 |
| 50A16SS | 16 | 3.520" | 0.68 |
| 50A17SS | 17 | 3.720" | 0.76 |
| 50A18SS | 18 | 3.920" | 0.86 |
| 50A19SS | 19 | 4.120" | 0.94 |
| 50A20SS | 20 | 4.320" | 1.06 |
| 50A21SS | 21 | 4.520" | 1.40 |
| 50A22SS | 22 | 4.720" | 1.60 |
| 50A23SS | 23 | 4.920" | 1.70 |
| 50A24SS | 24 | 5.120" | 1.80 |
| 50A25SS | 25 | 5.320" | 1.90 |
| 50A26SS | 26 | 5.520" | 1.70 |
| 50A28SS | 28 | 5.920" | 2.50 |
| 50A30SS | 30 | 6.320" | 2.70 |
| 50A32SS | 32 | 6.721" | 2.72 |
| 50A35SS | 35 | 7.320" | 3.70 |
| 50A36SS | 36 | 7.519" | 3.82 |
| 50A40SS | 40 | 8.320" | 4.70 |
| 50A45SS | 45 | 9.310" | 6.00 |
| 50A46SS | 46 | 9.911" | 6.58 |
| 50A54SS | 54 | 11.106" | 8.30 |
| 50A60SS | 60 | 12.300" |
10.80 |
- Size: 50SS
- Pitch (P): 0.625"
- Roller Diameter (D1): 0.400"
- Width Between Inner Plates (B1): 0.375"
- Pin Diameter (D2): 0.208"
- Pin Length (LR): 0.86"
- Pin Length (LC): 1.01"
- Inner Plate Height (H2): 0.59"
- Plate Thickness (T): 0.080"
- Tensile Strength: 3,779 LBS
- Weight: 0.7 LBS/ FT
