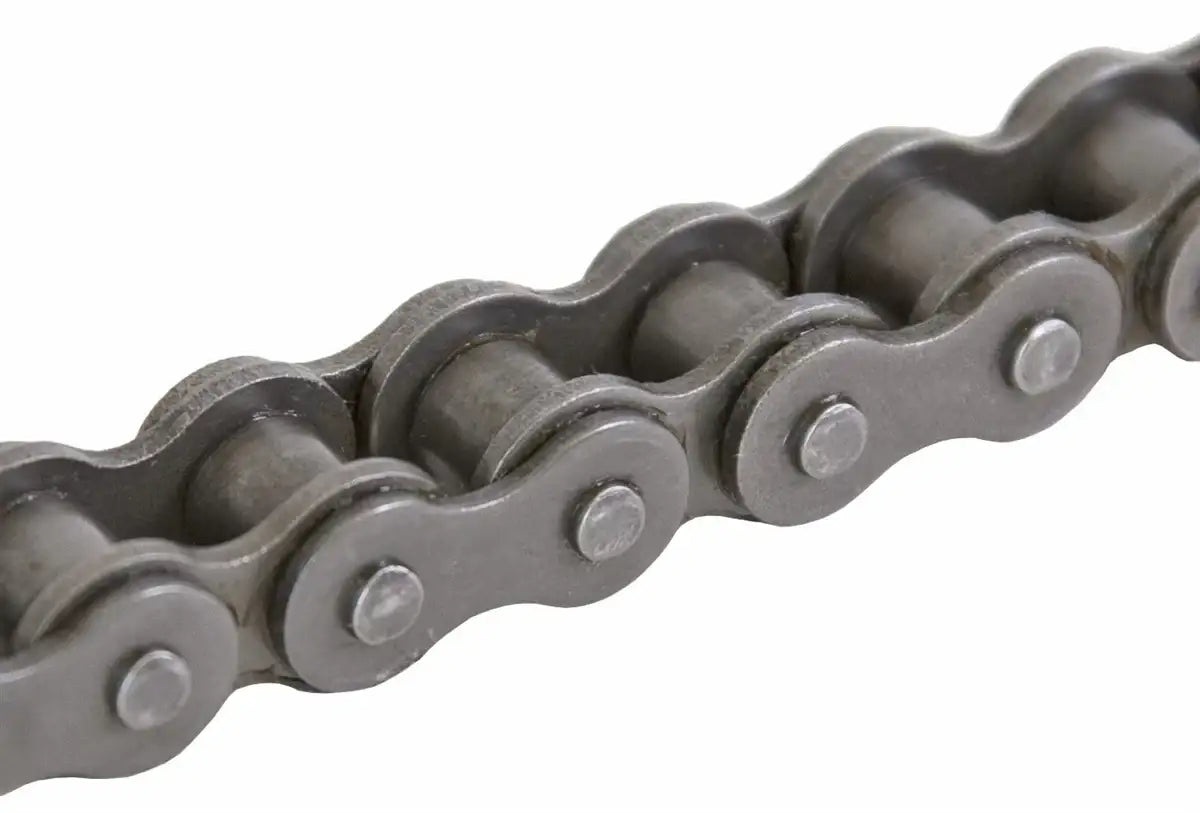

35 Roller Chain | ANSI 35 Chain 10ft Box
35 Roller Chain | ANSI 35 Chain 10ft Box
Note:
Custom Cut to Length Chain Also Available
Product Code: ECO-35RC-10ft
Shipping calculated at checkout.
Couldn't load pickup availability
#35 roller chain is the 2nd size in the ANSI B29.1 roller chain sizes lineup. It utilizes a small form-factor for tight applications and is manufactured out of high-strength mild carbon steel for shock load and fatigue resistance. The Economy Plus series 35 chain was engineered for general light to even medium-duty industrial or agricultural applications, it is made using heat-treated components, factory pre-loaded to minimize initial stretch as well as operation stretch over time, and is part pre-lubed then factory dipped in a good-quality lubricant. Something important to note about 35 chain specifically is that it is a roller-less bushed chain, meaning that the chain has no roller but utilizes bushings instead much like ANSI 25 chain. Our Economy Plus #35 roller chain is supplied in 10ft coils including a connecting link with each, we also stock 100ft reels, 250ft reels, and 500ft reels of this chain for applications requiring longer lengths. After you select and purchase your chain make sure to use proper roller chain lubrication as well as proper roller chain tension, these practices not only improve chain performance but greatly increases longevity which reduces the need for downtime.
Pitch (P): 0.375"
Roller Width (W): 0.188"
Roller Diameter (D): 0.200"
Overall Width (A): 0.456"
Plate Height (H): 0.356"
Plate Thickness (T): 0.050"
Pin Diameter (E): 0.141"
Average Ultimate Strength: 2,100 LBS
Weight: 0.22 LBS/ FT
- Download The #35 Roller Chain Spec Sheet
In our ANSI 35 chain class, we offer a range of options as far as quality levels, packaging, and even material options. We also supply various attachments and even problem solver series #35 roller chain. To find out more view our complete section of 35 chains here!
35 Chain Sprockets
The below charts show our standard #35 roller chain sprockets, we also supply custom bore and configurations upon request.
A-Plate 35 Sprockets
B-Hub 35 Sprockets
Taper Bushed 35 Sprockets
QD-Bushed 35 Sprockets
H-Bushed 35 Sprockets
35 Idler Sprockets
35 Roller Chain Dimensions
Pitch (P): 0.375"
Roller Width (W): 0.188"
Roller Diameter (D): 0.200"
Overall Width (A): 0.456"
Plate Height (H): 0.356"
Plate Thickness (T): 0.050"
Pin Diameter (E): 0.141"
Average Ultimate Strength: 2,100 LBS
Weight: 0.22 LBS/ FT
- Download The #35 Roller Chain Spec SheetBulk #35 Roller Chain
Please note that we also supply cut-to-length custom strands of 35 chain as well.
35 Chain Sprockets
The below charts show our standard #35 roller chain sprockets, we also supply custom bore and configurations upon request.
A-Plate 35 Sprockets
| Size | Tooth Count | Outside Diameter (OD) | Stock Bore | Weight (LBS) |
|---|---|---|---|---|
| 35A15 | 15 | 1.990" | 1/2" | 0.10 |
| 35A16 | 16 | 2.110" | 1/2" | 0.12 |
| 35A17 | 17 | 2.230" | 1/2" | 0.12 |
| 38A18 | 18 | 2.350" | 1/2" | 0.14 |
| 35A19 | 19 | 2.470" | 1/2" | 0.16 |
| 35A20 | 20 | 2.590" | 1/2" | 0.20 |
| 35A21 | 21 | 2.710" | 1/2" | 0.20 |
| 35A22 | 22 | 2.830" | 1/2" | 0.22 |
| 35A23 | 23 | 2.950" | 1/2" | 0.24 |
| 35A24 | 24 | 3.070" | 1/2" | 0.26 |
| 35A25 | 25 | 3.190" | 1/2" | 0.28 |
| 35A26 | 26 | 3.310" | 1/2" | 0.28 |
| 35A27 | 27 | 3.430" | 1/2" | 0.34 |
| 35A28 | 28 | 3.550" | 1/2" | 0.34 |
| 35A30 | 30 | 3.790" | 1/2" | 0.46 |
| 35A32 | 32 | 4.030" | 5/8" | 0.46 |
| 35A35 | 35 | 4.390" | 5/8" | 0.60 |
| 35A36 | 36 | 4.510" | 5/8" | 0.62 |
| 35A40 | 40 | 4.990" | 19/32" | 0.70 |
| 35A42 | 42 | 5.230" | 19/32" | 0.78 |
| 35A45 | 45 | 5.590" | 19/32" | 0.88 |
| 35A48 | 48 | 5.950" | 19/32" | 1.21 |
| 35A54 | 54 | 6.660" |
19/32" | 1.32 |
| 35A60 | 60 | 7.380" | 23/32" | 1.66 |
| 35A70 | 70 | 8.580" | 23/32" | 2.30 |
| 35A72 | 72 | 8.810" | 23/32" | 2.56 |
| 35A80 | 80 | 9.770" | 23/32" | 3.16 |
| 35A84 | 84 | 10.250" | 23/32" | 3.26 |
| 35A96 | 96 | 11.680" | 23/32" | 4.64 |
| 35A112 | 112 | 13.590" | 23/32" | 5.05 |
| Size | Tooth Count | Outside Diameter (OD) | Stock Bore | Maximum Reccomended Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|
| 35B8 | 8 | 1.130" | 3/8" | 3/8" | 3/4" | 3/4" | 0.07 |
| 35B9 | 9 | 1.260" | 3/8" | 3/8" | 27/32" | 3/4" | 0.09 |
| 35B10 | 10 | 1.380" | 3/8" | 9/16" | 31/32" | 3/4" | 0.14 |
| 35B11 | 11 | 1.500" | 3/8" | 9/16" | 1-1/16" | 3/4" | 0.17 |
| 35B12 | 12 | 1.630" | 1/2" | 9/16" | 1-7/32" | 3/4" | 0.20 |
| 35B13 | 13 | 1.750" | 1/2" | 11/16" | 1-1/4" | 3/4" | 0.23 |
| 35B14 | 14 | 1.870" | 1/2" | 7/8" | 1-1/4" | 3/4" | 0.25 |
| 35B15 | 15 | 1.990" | 1/2" | 7/8" | 1-11/32" | 3/4" | 0.29 |
| 35B16 | 16 | 2.110" | 1/2" | 15/16" | 1-15/32" | 3/4" | 0.35 |
| 35B17 | 17 | 2.230" | 1/2" | 1-1/16" | 1-19/32" | 3/4" | 0.42 |
| 35B18 | 18 | 2.350" | 1/2" | 1-3/16" | 1-23/32" | 3/4" | 0.48 |
| 35B19 | 19 | 2.470" | 1/2" | 1-1/4" | 1-27/32" | 3/4" | 0.54 |
| 35B20 | 20 | 2.590" | 1/2" | 1-5/16" | 1-15/16" | 3/4" | 0.59 |
| 35B21 | 21 | 2.710" | 1/2" | 1-3/8" | 2" | 7/8" | 0.80 |
| 35B22 | 22 | 2.830" | 1/2" | 1-3/8" | 2" | 7/8" | 0.80 |
| 35B23 | 23 | 2.950" | 1/2" | 1-3/8" | 2" | 7/8" | 0.82 |
| 35B24 | 24 | 3.070" | 1/2" | 1-3/8" | 2" | 7/8" | 0.88 |
| 35B25 | 25 | 3.190" | 1/2" | 1-3/8" | 2" | 7/8" | 0.88 |
| 35B26 | 26 | 3.310" | 1/2" | 1-3/8" | 2" | 7/8" | 0.90 |
| 35B27 | 27 | 3.430" | 1/2" | 1-3/8" | 2" | 7/8" | 0.94 |
| 35B28 | 28 | 3.550" | 1/2" | 1-3/8" | 2" | 7/8" | 0.94 |
| 35B30 | 30 | 3.790" | 1/2" | 1-3/8" | 2" | 7/8" | 1.02 |
| 35B32 | 32 | 4.030" | 1/2" | 1-3/8" | 2" | 7/8" | 1.24 |
| 35B35 | 35 | 4.390" | 5/8" | 1-1/2" | 2-1/4" | 7/8" | 1.50 |
| 35B36 | 36 | 4.510" | 5/8" | 1-1/2" | 2-1/4" | 7/8" | 1.56 |
| 35B40 | 40 | 4.990" | 5/8" | 1-1/2" | 2-1/4" | 1" | 1.62 |
| 35B42 | 42 | 5.230" | 5/8" | 1-1/2" | 2-1/4" | 1" | 1.68 |
| 35B45 | 45 | 5.590" | 5/8" | 1-1/2" | 2-1/4" | 1" | 1.78 |
| 35B48 | 48 | 5.950" | 5/8" | 1-1/2" | 2-1/4" | 1" | 1.88 |
| 35B54 | 54 | 6.660" | 5/8" | 1-1/2" | 2-1/4" | 1" | 2.20 |
| 35B60 | 60 | 7.380" | 3/4" | 1-1/2" | 2-1/4" | 1" | 2.48 |
| 35B70 | 70 | 8.580" | 3/4" | 1-1/2" | 2-1/4" | 1" | 3.12 |
| 35B72 | 72 | 8.810" | 3/4" | 1-1/2" | 2-1/4" | 1" | 3.42 |
| 35B80 | 80 | 9.770" | 3/4" | 1-1/2" | 2-1/4" | 1" | 3.82 |
| 35B84 | 84 | 10.250" | 3/4" | 1-1/2" | 2-1/4" | 1" | 4.24 |
| 35B96 | 96 | 11.680" | 3/4" | 1-1/2" | 2-1/4" | 1" | 5.16 |
| 35B112 | 112 | 13.590" | 3/4" | 1-1/2" | 2-1/4" | 1" | 6.70 |
| Size | Tooth Count | Bushing Used | Outside Diameter (OD) | Pitch Diameter (PD) | Dimension (L) | Dimension (C) | Weight (LBS) |
|---|---|---|---|---|---|---|---|
| 35BTB18 | 18 | 1008 | 2.352" | 2.159" | 7/8" | 1-7/8" | 0.4 |
| 35BTB19 | 19 | 1008 | 2.472" | 2.278" | 7/8" | 1-13/16" | 0.5 |
| 35BTB20 | 20 | 1008 | 2.593" | 2.397" | 7/8" | 1-15/16" | 0.6 |
| 35BTB21 | 21 | 1008 | 2.713" | 2.516" | 7/8" | 2-1/16" | 0.7 |
| 35BTB22 | 22 | 1210 | 2.883" | 2.635" | 1" | 2-3/8" | 0.8 |
| 35BTB23 | 23 | 1210 | 2.954" | 2.754" | 1" | 2-7/16" | 0.9 |
| 35BTB24 | 24 | 1210 | 3.074" | 2.873" | 1" | 2-7/16" | 0.9 |
| 35BTB25 | 25 | 1210 | 3.194" | 2.992" | 1" | 2-7/16" | 1.2 |
| 35BTB26 | 26 | 1610 | 3.314" | 3.111" | 1" | 2-7/8" | 1.1 |
| 35BTB28 | 28 | 1610 | 3.553" | 3.349" | 1" | 2-7/8" | 1.2 |
| 35BTB30 | 30 | 1610 | 3.793" | 3.588" | 1" | 3-1/8" | 1.2 |
| 35BTB32 | 32 | 1610 | 4.032" | 3.826" | 1" | 3-1/4" | 1.3 |
| 35BTB35 | 35 | 1610 | 4.392" | 4.183" | 1" | 3-1/4" | 1.4 |
| 35BTB36 | 36 | 1610 | 4.511" | 4.303" | 1" | 3-1/4" | 1.4 |
| 35BTB40 | 40 | 1610 | 4.990" | 4.786" | 1" | 3-1/4" | 1.9 |
| 35BTB42 | 42 | 1610 | 5.229" | 5.018" | 1" | 3-1/4" | 2.0 |
| 35BTB45 | 45 | 1610 | 5.588" | 5.376" | 1" | 3-1/4" | 2.1 |
| 35BTB48 | 48 | 1610 | 5.946" | 5.734" | 1" | 3-1/4" | 2.3 |
| 35BTB54 | 54 | 1610 | 6.663" | 6.449" | 1" | 3-1/4" | 2.6 |
| 35BTB60 | 60 | 1610 | 7.380" | 7.165" | 1" | 3-1/4" | 3.0 |
| 35BTB70 | 70 | 1610 | 8.575" | 8.358" | 1" | 3-1/4" | 3.7 |
| 35BTB72 | 72 | 1610 | 8.814" | 8.597" | 1" | 3-1/4" | 3.9 |
| 35BTB80 | 80 | 1610 | 9.770" | 9.552" | 1" | 3-1/4" | 4.5 |
| 35BTB84 | 84 | 1610 | 10.247" | 10.029" | 1" | 3-1/4" | 4.9 |
| 35BTB96 | 96 | 1610 | 11.680" | 11.461" | 1" | 3-1/4" | 6.0 |
| 35BTB112 | 112 | 1610 | 13.590" | 13.371" | 1" | 3-1/4" | 7.8 |
| Size | Tooth Count | Bushing Used | Outside Diameter | Pitch Diameter | (L1) | (L2) | (C) | (Y) | (G) | (X) | (T) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 35JA19 | 19 | JA | 2.470" | 2.278" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.28 |
| 35JA20 | 20 | JA | 2.590" | 2.397" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.32 |
| 35JA21 | 21 | JA | 2.710" | 2.516" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.34 |
| 35JA22 | 22 | JA | 2.830" | 2.635" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.36 |
| 35JA23 | 23 | JA | 2.950" | 2.754" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.38 |
| 35JA24 | 24 | JA | 3.070" | 3.873" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.40 |
| 35JA25 | 25 | JA | 3.190" | 2.992" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.44 |
| 35JA26 | 26 | JA | 3.310" | 3.111" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.46 |
| 35JA27 | 27 | JA | 3.430" | 3.230" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.48 |
| 35JA28 | 28 | JA | 3.550" | 3.349" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.52 |
| 35JA30 | 30 | JA | 3.790" | 3.588" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.56 |
| 35JA32 | 32 | JA | 4.030" | 3.826" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 0.78 |
| 35JA35 | 35 | JA | 4.390" | 4.183" | 1-1/8" | 1-1/8" | 2-1/16" | 53/64" | 29/64" | 5/8" | 0.168" | 1.04 |
| 35SH36 | 36 | SH | 4.510" | 4.303" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 1.06 |
| 35SH40 | 40 | SH | 4.990" | 4.780" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 1.18 |
| 35SH42 | 42 | SH | 5.230" | 5.018" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 1.26 |
| 35SH45 | 45 | SH | 5.590" | 5.376" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 1.40 |
| 35SH48 | 48 | SH | 5.950" | 5.734" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 1.58 |
| 35SH54 | 54 | SH | 6.660" | 6.449" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 1.88 |
| 35SH60 | 60 | SH | 7.380" | 7.165" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 2.28 |
| 35SH70 | 70 | SH | 8.580" | 8.358" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 2.94 |
| 35SH72 | 72 | SH | 8.810" | 8.597" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 3.14 |
| 35SH80 | 80 | SH | 9.770" | 9.552" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 3.68 |
| 35SH84 | 84 | SH | 10.250" | 10.029" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 3.96 |
| 35SH96 | 96 | SH | 11.680" | 11.461" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 5.38 |
| 35SH112 | 112 | SH | 13.590" | 13.371" | 1-7/16" | 1-7/16" | 2-11/16" | 1-5/64" | 41/64" | 13/16" | 0.168" | 6.60 |
| Size | Tooth Count | Bushing Used | Outside Diameter (OD) | Pitch Diameter | (OL) | (L) | (C) | (H) | (P) | (T) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 35H19 | 19 | H | 2.470" | 2.278" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.5 |
| 35H20 | 20 | H | 2.590" | 2.397" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.5 |
| 35H21 | 21 | H | 2.710" | 2.516" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.6 |
| 35H22 | 22 | H | 2.830" | 2.635" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.7 |
| 35H23 | 23 | H | 2.950" | 2.754" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.7 |
| 35H24 | 24 | H | 3.070" | 2.873" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.8 |
| 35H25 | 25 | H | 3.190" | 2.992" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.8 |
| 35H26 | 26 | H | 3.310" | 3.111" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.8 |
| 35H28 | 28 | H | 3.550" | 3.349" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.9 |
| 35H30 | 30 | H | 3.790" | 3.588" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.9 |
| 35H32 | 32 | H | 4.030" | 3.826" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 0.9 |
| 35H35 | 35 | H | 4.390" | 4.183" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 1.0 |
| 35H36 | 36 | H | 4.510" | 4.303" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 1.0 |
| 35H40 | 40 | H | 4.990" | 4.780" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 1.2 |
| 35H42 | 42 | H | 5.230" | 5.018" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 1.2 |
| 35H45 | 45 | H | 5.590" | 5.376" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 1.4 |
| 35H48 | 48 | H | 5.950" | 5.734" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 1.5 |
| 35H54 | 54 | H | 6.660" | 6.449" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 1.8 |
| 35H60 | 60 | H | 7.380" | 7.165" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 2.3 |
| 35H70 | 70 | H | 8.580" | 8.358" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 2.8 |
| 35H72 | 72 | H | 8.810" | 8.597" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 3.0 |
| 35H80 | 80 | H | 9.770" | 9.552" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 3.8 |
| 35H84 | 84 | H | 10.250" | 10.029" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 4.0 |
| 35H96 | 96 | H | 11.680" | 11.461" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 5.3 |
| 35H112 | 112 | H | 13.590" | 13.371" | 1-1/2" | 1-1/4" | 1/16" | 2-1/2" | 1-5/32" | 0.168" | 6.8 |
 Ball Bearing |
 Needle Bearing |
 Bronze Bushed |
|---|---|---|
| 35BB18H X 1/2" | 35NB13H X 1/2" | 35BR15 X 1/2" |
| 35BB18H X 5/8" | 35NB13H X 1" | 35BR21 X 7/8" |
| 35BB19H X 1/2" | -- | 31E20 X 1/2" |
| 35BB19H X 3/8" | -- | -- |
| 35BB20H X 5/8" | -- | -- |
Feature
- Chain Size: #35 Roller Chain
- Tensile Strength: 2,100LBS
- Economy Plus Quality
- Shot Peened
- Heat Treated

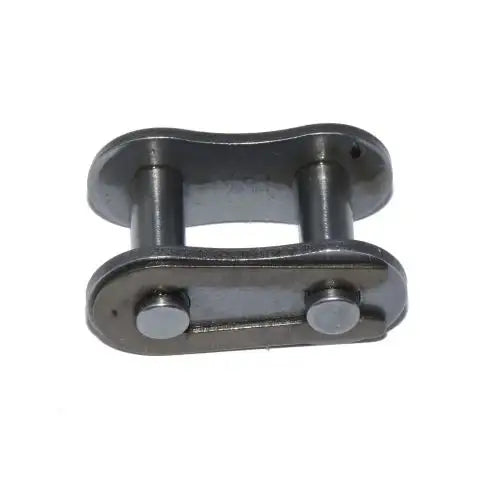

- Supplied in a 10ft Box Including a Connecting Link
- Chain Size: #35 Roller Chain
- Tensile Strength: 2,100lbs
- Pitch (P): 0.375"
- Roller Width (W): 0.188"
- Roller Diameter (D): 0.200"
- Plate Height (H): 0.340"
- Plate Thickness (T): 0.050"
- Pin Diameter (E): 0.1410"
- Overall Width (F): 0.460"
