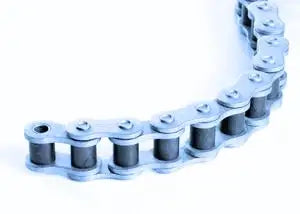

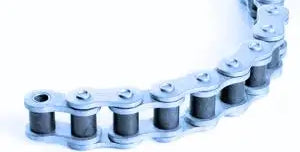

Economy Plus #100 Corrosion Resistant Coated Roller Chain

Economy Plus #100 Corrosion Resistant Coated Roller Chain

Note: Custom Cut to Length Chain Also Available
Product Code: ECO-100-COATED-10FT
Shipping calculated at checkout.
View full details
This #100 Coated Roller Chain is highly resistant to corrosion. This coated roller chain is more resistant to corrosion than nickel plated roller chain and is often times more cost effective. The baked on coating is applied in a way to reduce premature corrosion and failure. This roller chain fully meets all ANSI standards and will work on standard roller chain sprockets. #100 coated roller chain is commonly supplied in 10ft boxes, each box includes one connecting link. If larger footage reels, attachments, or any addition modifications are needed please contant us.

Dimensions

  • Chain Size: #100 Coated Roller Chain
  • Tensile Strength: 24,000lbs
  • **Note: All Dimensions Are in Inches**
  • Pitch (P): 1.250
  • Roller Width (W): 0.750
  • Roller Diameter (R): 0.750
  • Plate Height (H): 1.165
  • Plate Thickness (T): 0.156
  • Pin Diameter (D): 0.375
  • Overall Width (F): 0.794

Feature

  • Size: #100 Coated Roller Chain
  • Tensile Strength: 24,000lbs
  • Highly Resistant To Corrosion
  • Heat Treated For Higher Strength & Durability
  • Fully Meets All ANSI Standards
  • Supplied in a 10ft Box Including One Connecting Link
Featured image
  • Chain Size: #100 Coated Roller Chain
  • Tensile Strength: 24,000lbs
  • **Note: All Dimensions Are in Inches**
  • Pitch (P): 1.250
  • Roller Width (W): 0.750
  • Roller Diameter (R): 0.750
  • Plate Height (H): 1.165
  • Plate Thickness (T): 0.156
  • Pin Diameter (D): 0.375
  • Overall Width (F): 0.794
