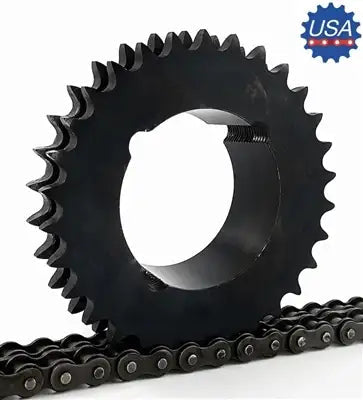

Triple E16BTB21 Sprocket (Taper Bushed)

This E16BTB21 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 3030 taper bushing. Our E16BTB21 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our E16BTB21 sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 21 tooth sprocket, we also stock a high-quality 16B-3 roller chain, 3030 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed E16BTB21 sprockets, please contact us and one of our sales team members will be happy to assist you.

E16BTB21 Sprocket Dimensions

• Sprocket Size: E16BTB21
• Tooth Count: 21
• Pitch Diameter: 170.43mm
• Bushing Size: 3030
• Maximum Bushing Bore Size: 75mm
• Length Thru Bore (L): 76.2mm
• Sprocket Weight: 6.60 kG
