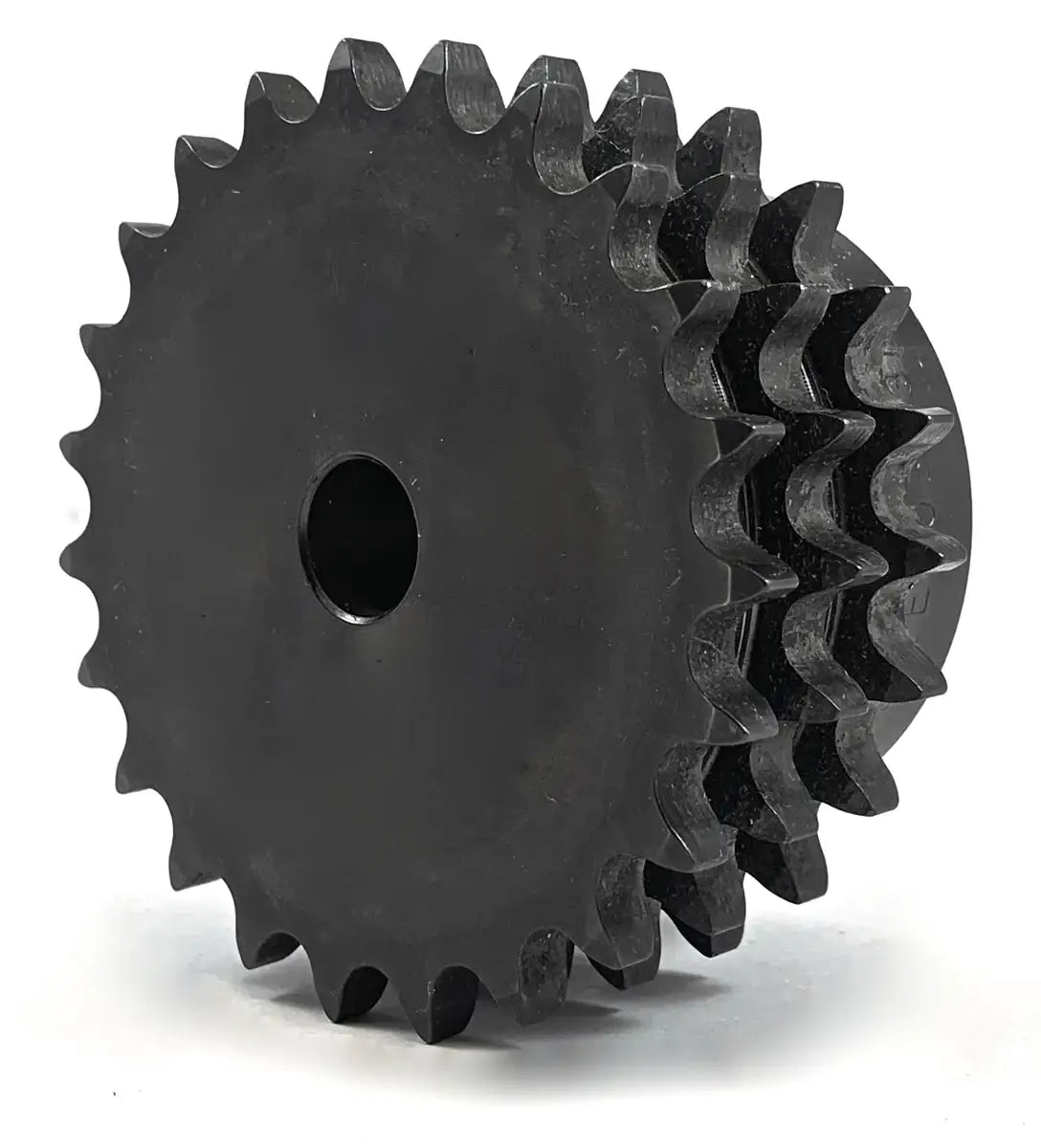

Triple E100B30 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: E100B30-SPROCKET
Only 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Triple E100B30 Sprocket Features
Triple E100B30 Sprocket Specifications
E100B30 Sprocket is a triple B-Hub roller chain sprocket with 30 teeth and a stock bore. Our triple E100B30 sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. Besides the sprocket, we also stock 100-3 roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
E100B30 Sprocket Dimensions
- Sprocket Size: E100B30
- Tooth Count: 30
- Outside Diameter: 12.640"
- Sprocket Type: B
- Stock Bore: 1-1/2"
- Recommend Maximum Bore: 3-13/16"
- Hub Diameter: 5-3/4"
- Length Thru Bore: 4-3/4"
- Sprocket Weight: 103.0 LBS
- Sprocket Size: E100B30
- Tooth Count: 30
- Outside Diameter: 12.640"
- Sprocket Type: B
- Stock Bore: 1-1/2"
- Recommend Maximum Bore: 3-13/16"
- Hub Diameter: 5-3/4"
- Length Thru Bore: 4-3/4"
- Sprocket Weight: 103.0 LBS
