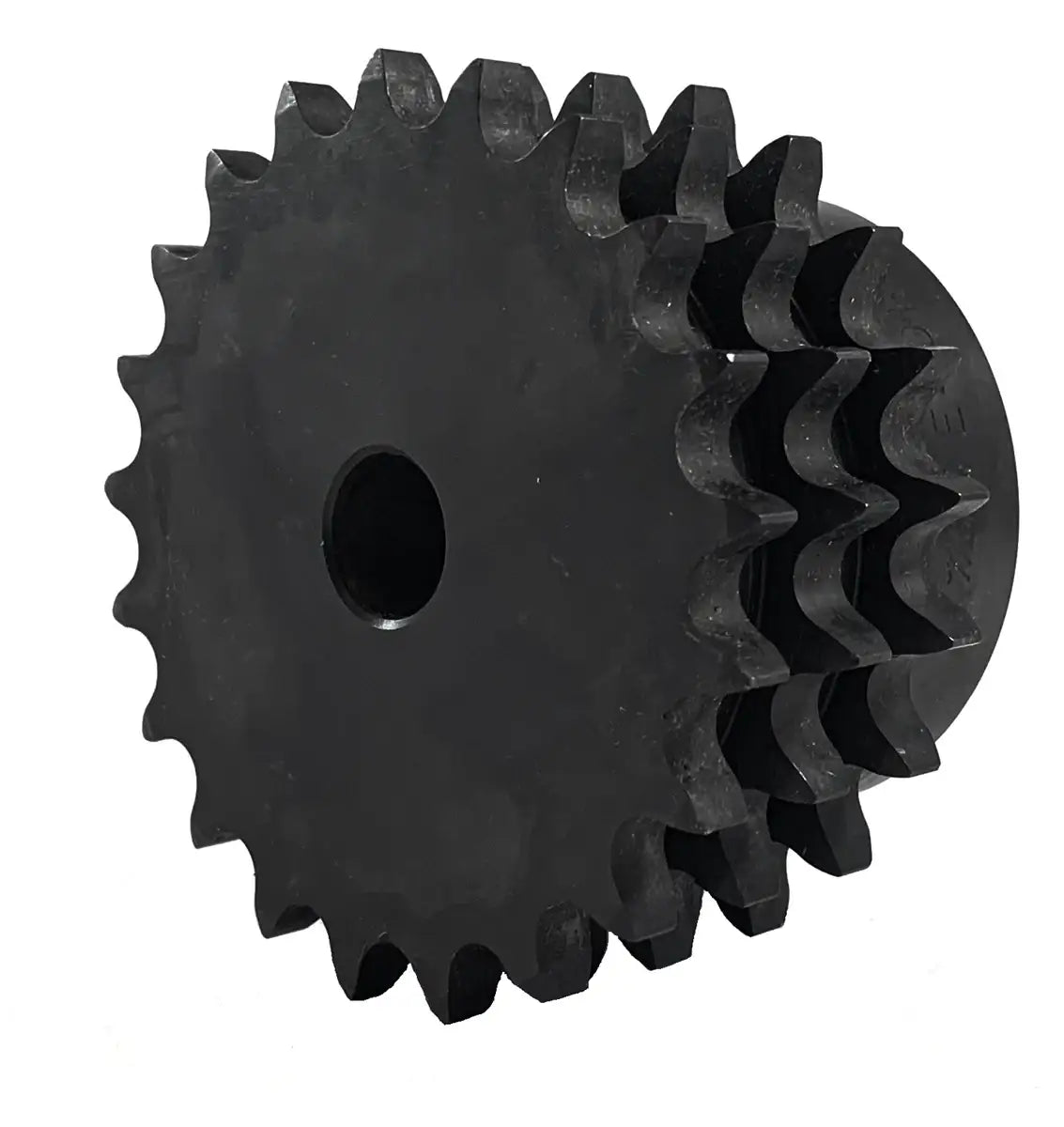

Triple E06B22 Sprocket With Stock Bore

This E06B22 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228. Our E06B22 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our triple E06B22 sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 22 tooth sprocket, we also stock a high-quality 06B-3 roller chain and a wide array of roller chain accessories. For more information or to get a quote on E06B22 sprockets, please contact us and one of our sales team members will be happy to assist you.

E06B22 Sprocket Dimensions

• Sprocket Size: E06B22
• Tooth Count: 22
• Pitch Diameter: 66.93mm
• Stock Bore: 14mm
• Maximum Bore: 35mm
• Dimension (H): 54mm
• Dimension (L): 40mm
• Sprocket Weight: 0.95 kg
