DS50ATL17H Sprocket (Double Single)

Power Transmission > Sprockets > Roller Chain Sprockets > Multi Strand Roller Chain Sprockets > Double Roller Chain Sprockets > #50-2 Double Sprockets > #50 Double-Single Sprockets

DS50ATL17H Sprocket (Double Single)

Note: Custom Cut to Length Chain Also Available
$67.99
SKU: DS50ATL17H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715091628399" , "metafield_value":""}]
DS50ATL17H Sprocket (Double Single) Features
DS50ATL17H Sprocket (Double Single) Specifications

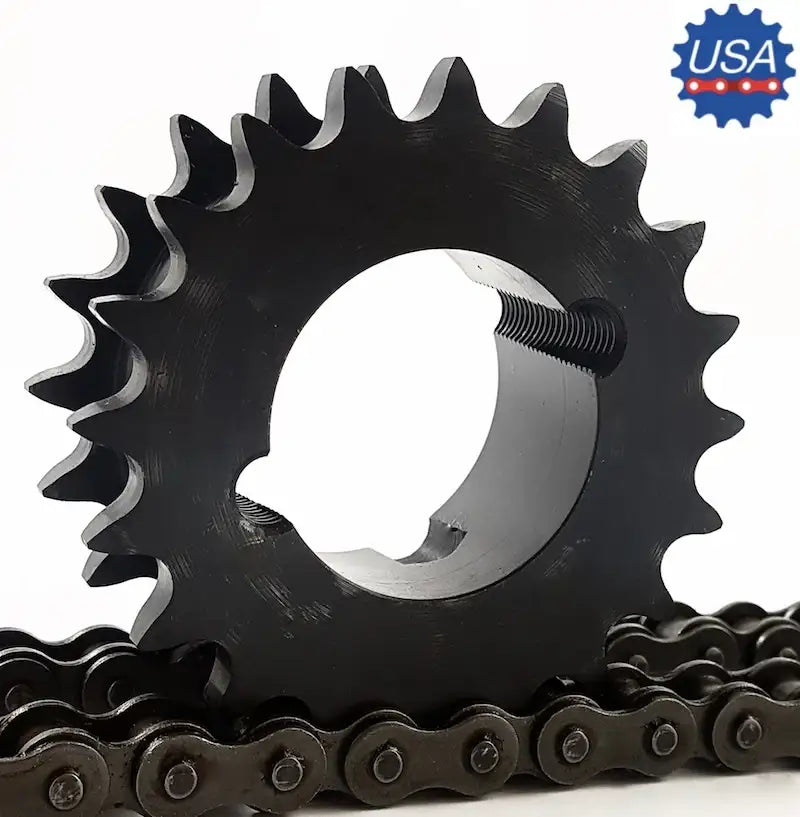

This DS50ATL17H sprocket is a durable, high quality, and precision double single sprocket with hardened teeth that is manufactured to accept a 1615 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. DS50ATL17H sprockets are made to accept a 1615 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:
DS50ATL17H Sprocket (Double Single)
  • Sprocket Size: DS50ATL17H
  • Bushing Size: 1615
  • Tooth Count: 17
  • Outside Diameter: 3.720"
  • Pitch Diameter: 3.401"
  • Sprocket Type: A
  • Dimension (L1): 1-21/32"
  • Dimension (C): 1-5/16"
  • Dimension (E): 2-11/16"
  • Dimension (L2): 1-1/2"
  • Dimension (W): 0.343"
  • Sprocket Weight: 1.8 LBS
