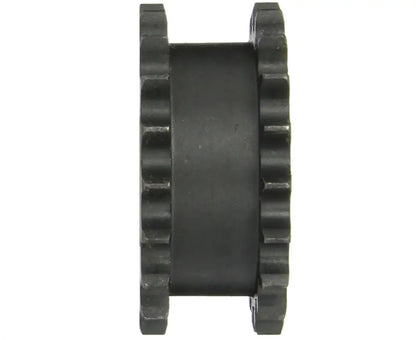

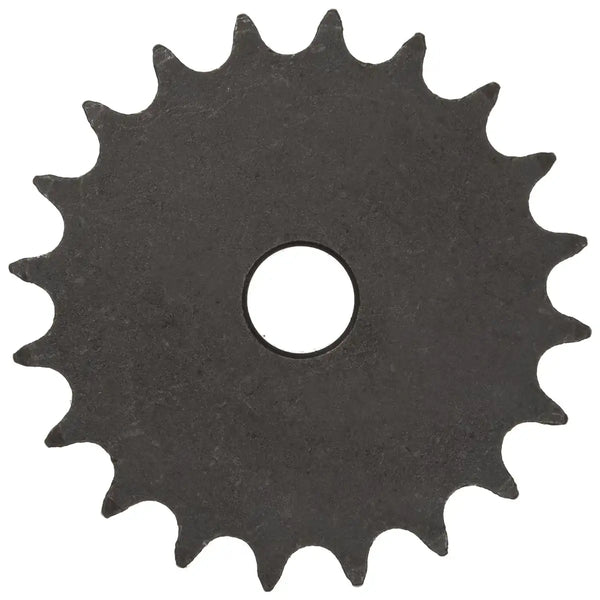

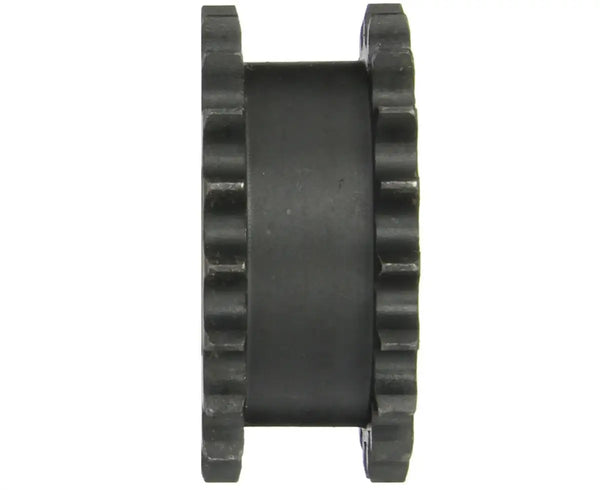

DS60A16H Sprocket (Double Single)
Note:
Custom Cut to Length Chain Also Available
$56.99
SKU: DS-60A16H-SPROCKET-SB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
DS60A16H Sprocket (Double Single) Features
DS60A16H Sprocket (Double Single) Specifications
This double single type A DS60A16H sprocket with 16 hardened teeth is manufactured to run two separate strands of #60-1 Roller chain and is supplied with a 3/4" stock bore. This DS60A16H sprocket is made from high quality carbon steel, and has heat-treated hardened teeth, meaning that this sprocket is extremely durable and high strength. Type A (A-Plate) sprockets have a narrow profile and no hub, and are easily adaptable for bushings, bearings, and sleeves. They can be used with large diameter shafts, drilled for mounting, or welded directly to other apparatuses. We have bushed type double-single sprockets on the shelf and the capabilities to re-bore/ machine these sprockets out ranging from 3/4" bore to 1-11/16" bore. Please contact us for additional questions on double single sprockets, custom quotes, or for large quantity request.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
Dimensions:
- Sprocket Size: DS60A16H
- Tooth Count: 16
- Outside Diameter: 4.220"
- Pitch Diameter: 3.844"
- Sprocket Type: A
- Stock Bore: 3/4"
- Maximum Bore: 1-11/16"
- Dimension (L): 1-15/16"
- Dimension (C): 1-31/64"
- Dimension (E): 3-3/64"
- Dimension (W): 0.459"
- Sprocket Weight: 4.5 LBS
Phone: (407) 347-3519
Email:
- Sprocket Size: DS60A16H
- Tooth Count: 16
- Outside Diameter: 4.220"
- Pitch Diameter: 3.844"
- Sprocket Type: A
- Stock Bore: 3/4"
- Maximum Bore: 1-11/16"
- Dimension (L): 1-15/16"
- Dimension (C): 1-31/64"
- Dimension (E): 3-3/64"
- Dimension (W): 0.459"
- Sprocket Weight: 4.5 LBS
