DF3498C9 Sprocket

Name: DF3498C9 Sprocket
Brand: USA ROLLER CHAIN
SKU: DF3498C9-SPROCKET
Availability: InStock

SKU: DF3498C9-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

DF3498 Chain - Double Flex Chain

DF3498C9 Sprocket Description/Features

DF3498C9 Sprocket Specifications

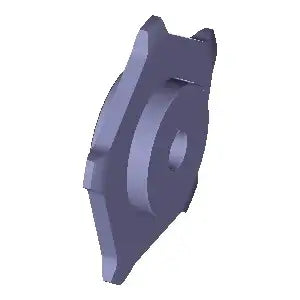

This DF3498C9 sprocket is a high quality, durable, and solid construction sprocket manufactured specifically for DF3498 double flex chain. DF3498C9 sprockets are supplied with 9-teeth and are also available as a B-Hub, A-Plate, or split configuration sprockets. For more information or to get a quote on DF3498C9 sprockets please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: DF3498C9
Pitch: 1.750"
Roller Diameter: 1.400"
Plate Thickness: 0.575"
Tooth Count: 9
Stock Bore: 1.250"
Maximum Recommended Bore: 2.940"
Pitch Diameter: 12.243"
Hub Diameter: 4.750"
Length Thru Bore: 3.130"
Weight: 31.0 LBS
Sprocket Type: C
