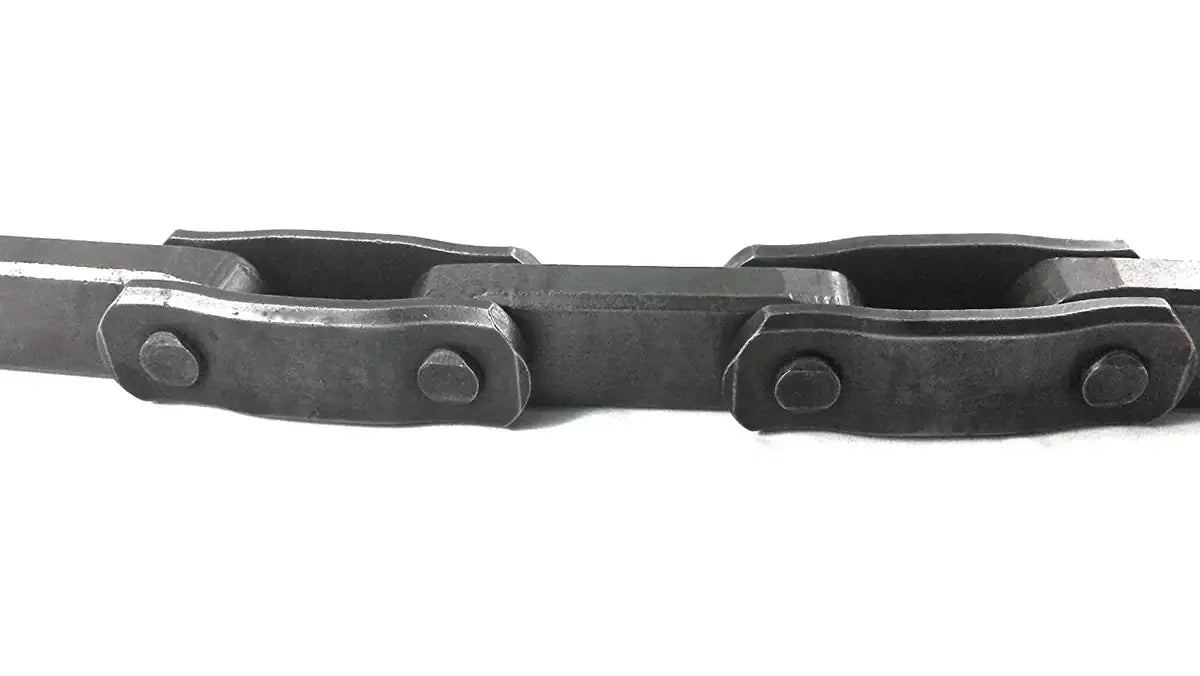

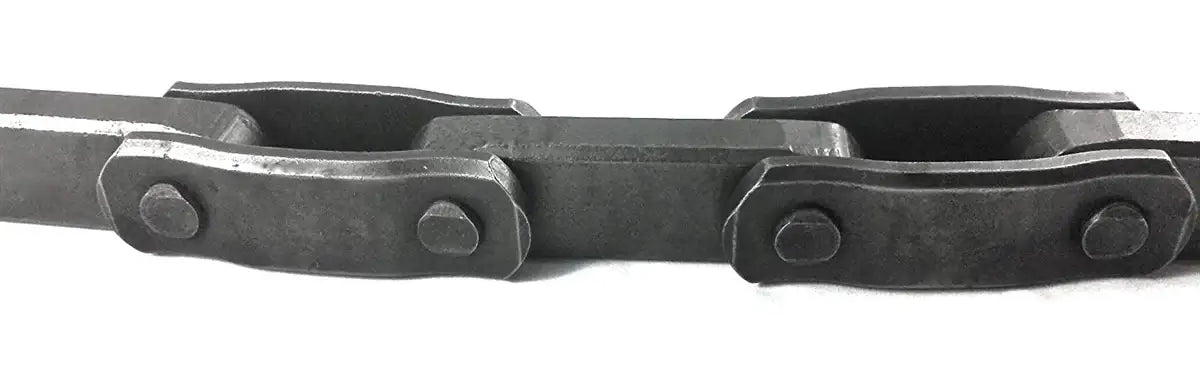

• DF3498 Chain Double Flex DF3498 Chain
1 1

DF3498 Chain - Double Flex Chain

DF3498 Chain - Double Flex Chain

Note: Custom Cut to Length Chain Also Available
Product Code: DF3498-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
DF3498 Chain is designed to rotate on two planes and travel in multiple directions with a large sliding surface, making it an ideal chain for a very wide range of applications. The design of the chain allows maximum flexibility so the chain can travel around obstacles and even corners. This DF3498 chain is manufactured with high-quality steel and features hardened pins, bearing surfaces, and sliding surfaces to dramatically increase the strength and operation life of the chain. USA Roller Chain and Sprockets offers this chain at an extremely competitive price directly from stock, as well as a full line of high-quality DF3498 chain sprockets. There are other options and configurations available for double flex chain upon request. For more information on DF3498 chain or other products we offer, or to get a quote please contact us and we will be happy to assist you.

Dimensions:
DF3498 Chain - Double Flex Chain
  • Chain Size: DF3498
  • Center Bar Pitch: 1.750"
  • Side Bar Pitch: 2.500"
  • Minimum Flex Radius: 18.000"
  • Tensile Strength: 50,000 LBS
  • Maximum Allowable Load: 4,000 LBS
  • Overall Width (A): 1.450"
  • Inside Link Width (W): 0.640"
  • Sidebar Thickness (T): 0.310"
  • Sidebar Height (H): 1.400"
  • Pin Diameter (D): 0.630"
  • Pin Length (L): 1.450"
  • Chain Weight: 3.90 LBS/ FT

Chain Speed Table:
DF3498 Chain - Double Flex Chain


Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Double Flex Chain
  • Typically In-stock
  • Extremely Durable
  • Full Line of Sprockets Available
Featured image
  • Chain Size: DF3498
  • Center Bar Pitch: 1.750"
  • Side Bar Pitch: 2.500"
  • Minimum Flex Radius: 18.000"
  • Tensile Strength: 50,000 LBS
  • Maximum Allowable Load: 4,000 LBS
  • Overall Width (A): 1.450"
  • Inside Link Width (W): 0.640"
  • Sidebar Thickness (T): 0.310"
  • Sidebar Height (H): 1.400"
  • Pin Diameter (D): 0.630"
  • Pin Length (L): 1.450"
  • Chain Weight: 3.90 LBS/ FT
