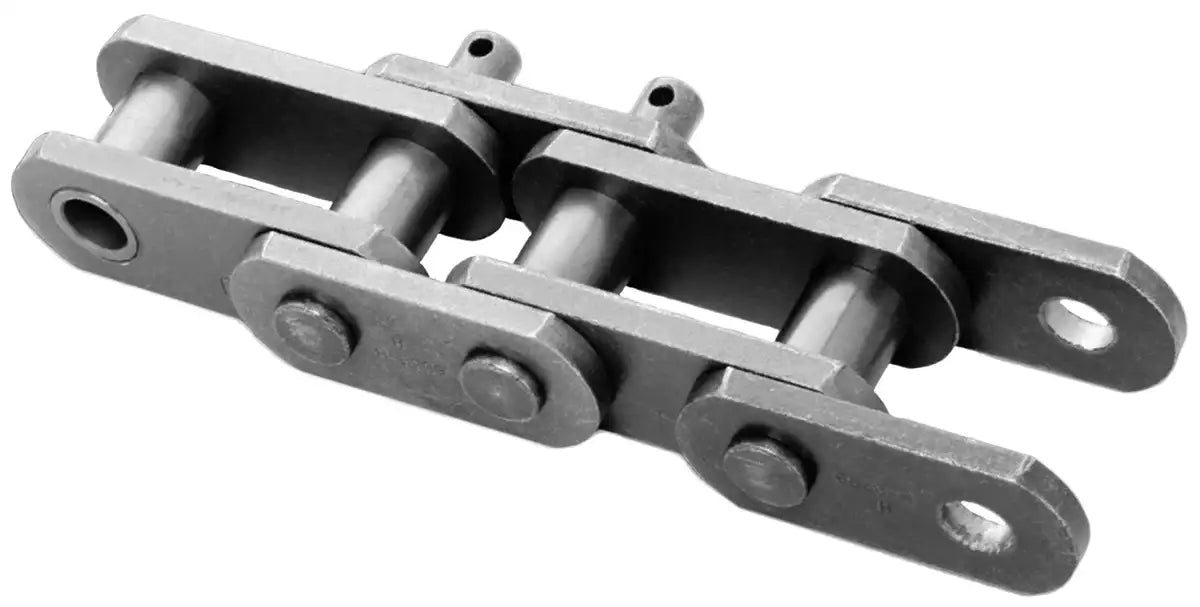

D6569 Feeder Breaker Chain | D6569 Chain

D6569 feeder breaker chain is used in the mining industry's stationary, mobile, and crawler-mounted feeder breakers. Our D6569 chain is manufactured from high-grade steel with specific forming practices to ensure high precision and heat treatments for each component to improve wear life, performance, and strength! D6569 mining chain is typically used in parallel sets with cross sections/ slats connecting the two chain strands; these slats carry mined material. Additionally, we supply the D6569 chain with options like; anti-corrosive coating or plating, sealed, self-lubricating, or with an extra side plate placed at the link plate with the extended pins. The extended pin spacing can be specified at the time of order. Also, our D6569 chain directly interchanges with other brands! For more information or to get a quote on our premium D6569 chain or D6569 sprockets, contact our customer service team, and we will be happy to assist you!

D6569 Chain

• Chain Size: D6569
• Pitch (P): 3.500"
• Dimension (L): 2.250"
• Dimension (Y): 1.740"
• Dimension (H): 2.750"
• Dimension (T): 0.562"
• Dimension (C): 0.500"
• Dimension (N): 1.113"
• Dimension (F): 5.344"
• Dimension (X): 6.310"
• Dimension (J): 3.841"
• Dimension (U): 3.484"
• Dimension (B): 1.092"
• Dimension (G): 0.358"
• Dimension (O): 1.591"
• Average Tensile Strength: 160,000 LBS
