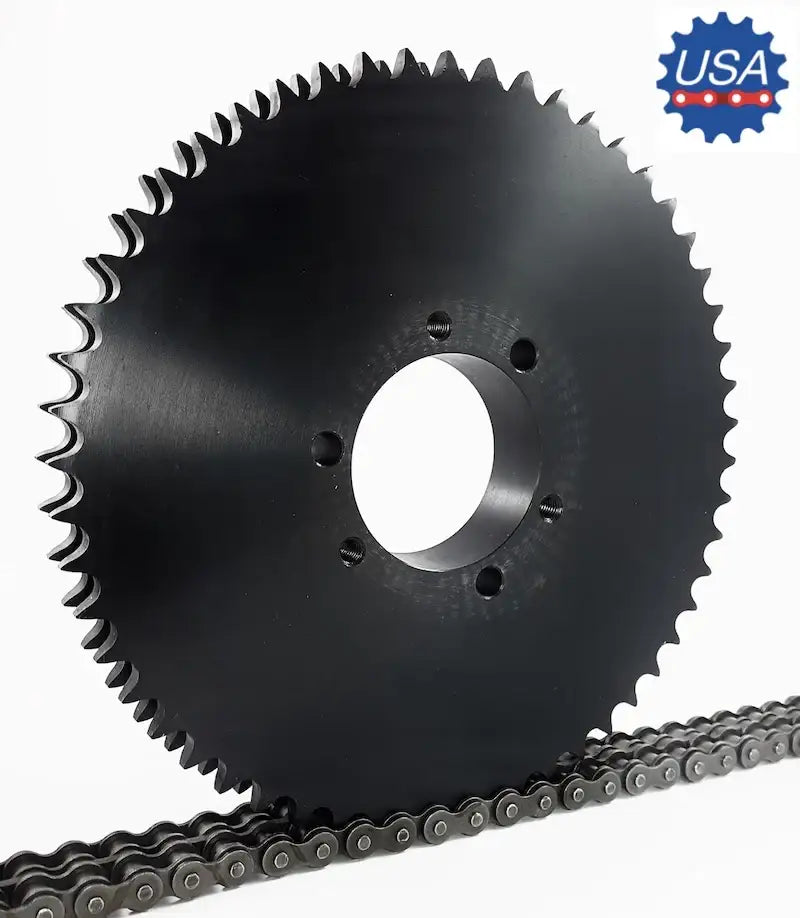

D50SF60 Sprocket (QD Type)

Power Transmission > Sprockets > Roller Chain Sprockets > Multi Strand Roller Chain Sprockets > Double Roller Chain Sprockets > #50-2 Double Sprockets > #50-2 QD Sprockets

D50SF60 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$318.99
SKU: D50SF60-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715066200431" , "metafield_value":""}]
D50SF60 Sprocket (QD Type) Features
D50SF60 Sprocket (QD Type) Specifications
This D50SF60 sprocket is a durable, high quality, and precision double sprocket that is manufactured to accept a SF Bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. D50SF60 sprockets are made to accept a SF size QD bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:
D50SF60 Sprocket (QD Type)
  • Sprocket Size: D50SF60
  • Bushing Type: SF
  • Tooth Count: 60
  • Outside Diameter: 12.300"
  • Pitch Diameter: 11.942"
  • Type: C
  • Dimension (L1): 2-1/4"
  • Dimension (L2): 2-1/4"
  • Dimension (C): 4-5/8"
  • Dimension (Y): 3/4"
  • Dimension (P): 13/64"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.332"
  • Dimension (W): 1.045"
  • Sprocket Weight: 29.12 LBS
  • Weight With Hub: 32.12 LBS
