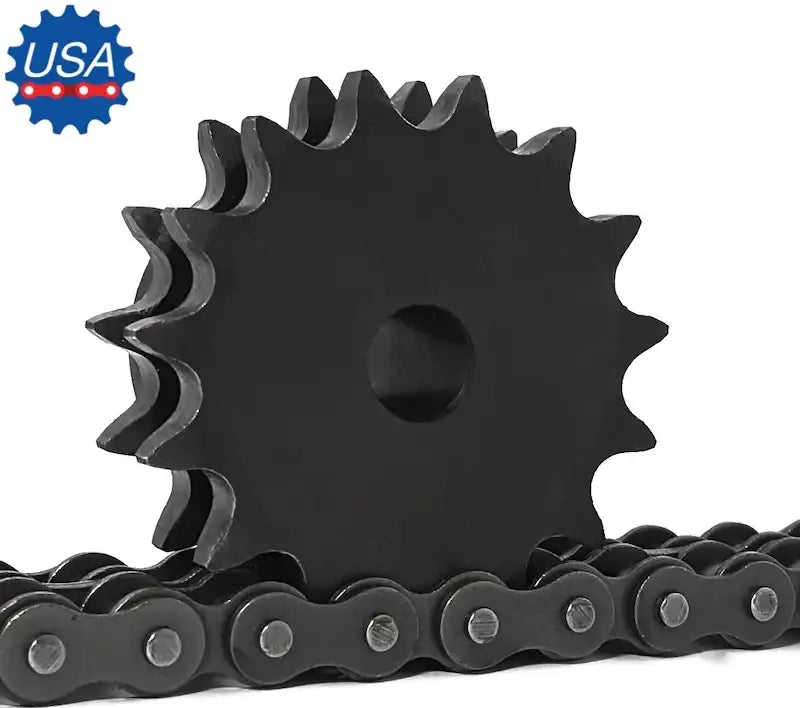

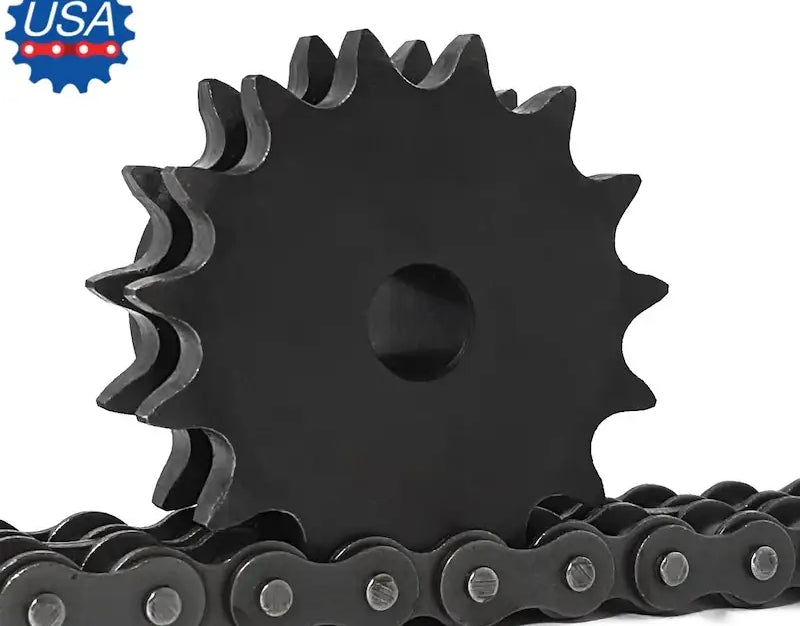

D40B20H Sprocket With Stock Bore
Note:
Custom Cut to Length Chain Also Available
$35.99
SKU: D40B20H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D40B20H Sprocket With Stock Bore Features
D40B20H Sprocket With Stock Bore Specifications
This D40B20H sprocket is a durable, high quality, and precision double sprocket with 20 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D40B20H sprockets with a stock bore is supplied with a standard 5/8" inside diameter hole with no keyway or set screws and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
D40B20H Dimensions:
- Sprocket Size: D40B20H
- Tooth Count: 20
- Outside Diameter: 3.460"
- Hub Type: B
- Bore Size: 5/8"
- Recommended Maximum: 1-7/8"
- Hub Diameter: 2-5/8"
- Length Thru Bore: 1-5/8"
- Weight: 2.64 LBS
- Interchanges: D40B20, D40B20H, HD40B20
