106488W91 Massey Ferguson Gathering Chain Replacement

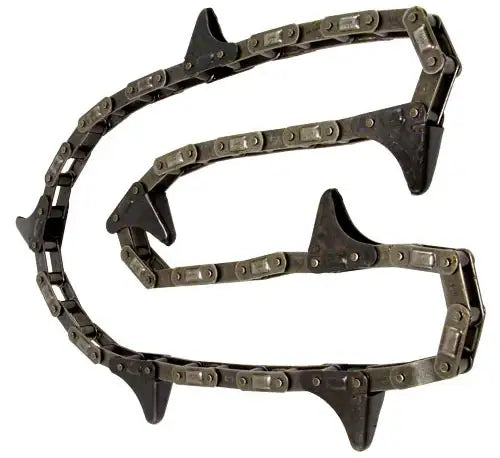

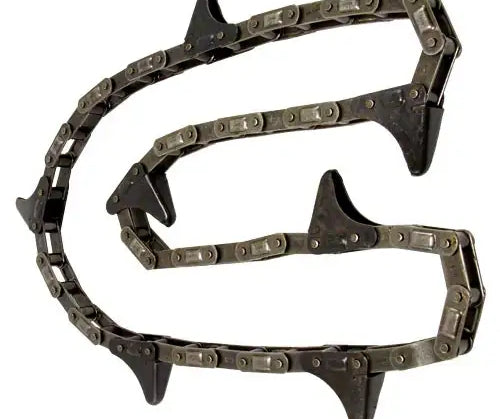

This 106488W91 Massey Ferguson corn head gathering chain assembly Fits Massey Ferguson 800 series corn head gathers which has a 9 tooth upper drive sprocket and an 11 tooth lower idler sprocket. What separates this chain assembly from others is that it uses a extreme-duty CA550 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. It features seven (7) C13E attachments/ gathering lugs that are spaced every 11.876" and is 51 links long, which is 83.13" total. We can also supply sprockets, bearings, and other accessories to corn head gathers, combines, and other types of agricultural equipment.

106488W91 Chain Dimensions

CA550 Chain Dimensions

• Chain Size: CA550
• Pitch (P): 1.630"
• Roller Width (W): 0.797"
• Roller Diameter (D): 0.656"
• Overall Width Riveted (C): 1.420"
• Overall Width Cottered: 1.563"
• Link Plate Height (H): 0.750"
• Link Plate Thickness (T): 0.105"
• Pin Diameter (E): 0.281"
• Ultimate Strength: 11,250 LBS

Attachment/ Gathering Lug Dimensions

• Attachment #: CA550 C13E
• Dimension (C): 1.266"
• Angle (R): 15 Degrees
• Dimension (S): 3.625"
• Dimension (T): 0.105"
