1689933W91 Massey Ferguson Gathering Chain Replacement

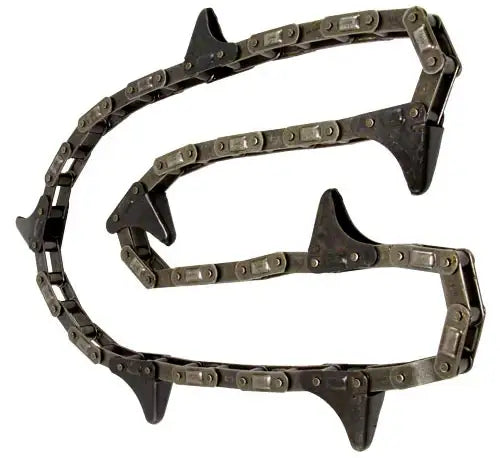

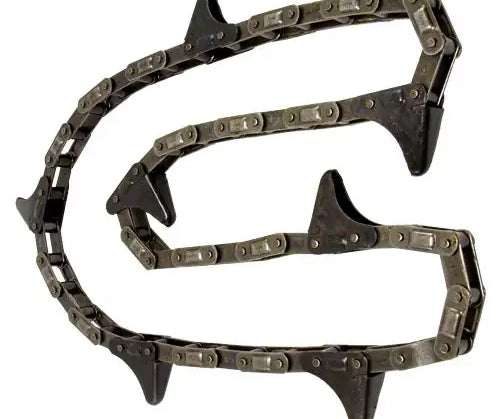

This 1689933W91 corn head gathering chain assembly fits all Massey Ferguson corn head gather 9400/ SN 47000 and up series. What separates this chain assembly from others is that it uses an extreme-duty CA550 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. It has eight (8) C11E attachments/ gathering lugs that are spaced every 9.98" and it is 49 links long, which is 79.87" total. We can also supply sprockets, bearings, and other accessories that go to corn head gathers, combines, and other types of agricultural equipment.

1689933W91 Chain Dimensions

CA550 Chain Dimensions

• Chain Size: CA550
• Pitch (P): 1.630"
• Roller Width (W): 0.797"
• Roller Diameter (D): 0.656"
• Overall Width Riveted (C): 1.420"
• Overall Width Cottered: 1.563"
• Link Plate Height (H): 0.750"
• Link Plate Thickness (T): 0.105"
• Pin Diameter (E): 0.281"
• Ultimate Strength: 11,250 LBS

Attachment/ Gathering Lug Dimensions

• Attachment #: CA550 C11E
• Dimension (C): 1.266"
• Angle (R): 17 Degrees
• Dimension (S): 2.500"
• Dimension (T): 0.105"
