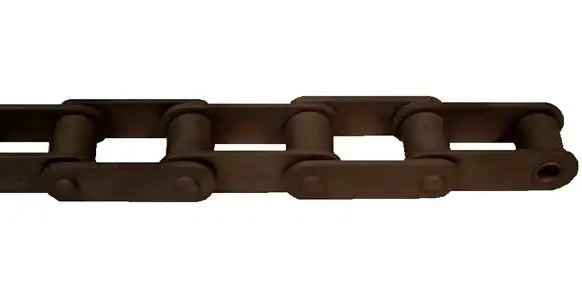

CA565 Roller Chain - 10ft Box (Agricultural Roller Chain)

Name: CA565 Roller Chain - 10ft Box (Agricultural Roller Chain)
Brand: USA ROLLER CHAIN
SKU: CA565-ROLLER-CHAIN
Availability: InStock

SKU: CA565-ROLLER-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

CA565 Roller Chain - 10ft Box (Agricultural Roller Chain) Description/Features

CA565 Roller Chain - 10ft Box (Agricultural Roller Chain) Specifications

CA565 roller chain is commonly known as an CA565 agricultural roller chain and is manufactured using hardened steel parts to close tolerances. This CA565 roller chain is durable, high quality, high strength, and has a long working life. CA565 agricultural roller chain is found in a wide range of applications including; agriculture, conveyors, corn gathering, elevator feed stations, feeder house, forage harvesters, baggers, grain handling, manure spreaders, and more! We offer a full line of CA565 roller chain attachments that can be assembled onto the chain in any configuration needed. We also offer a full line CA565 roller chain sprockets and can supply them with almost any hub, bore, or tooth configuration needed. For more information on CA565 roller chain or to get a quote on attachments or sprockets please contact us and we will be happy to assist you.

Dimensions:

Chain Size: CA565
Pitch (P): 1.630"
Roller Width (W): 0.740"
Roller Diameter (D): 0.698"
Overall Width Riveted (C): 1.620"
Overall Width Cottered: 1.745"
Link Plate Height (H): 1.000"
Link Plate Thickness (T): 0.178"
Pin Diameter (E): 0.345"
Ultimate Strength: 18,000 LBS
