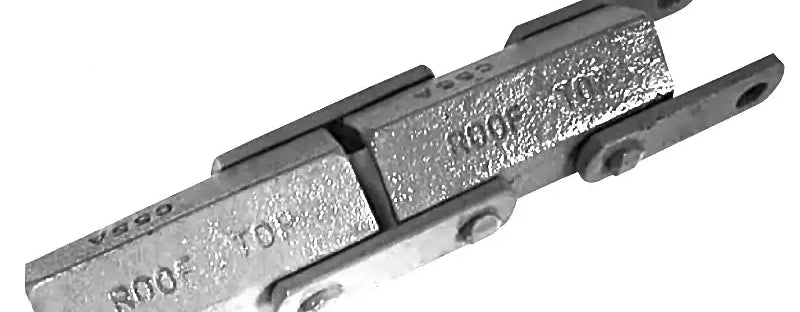

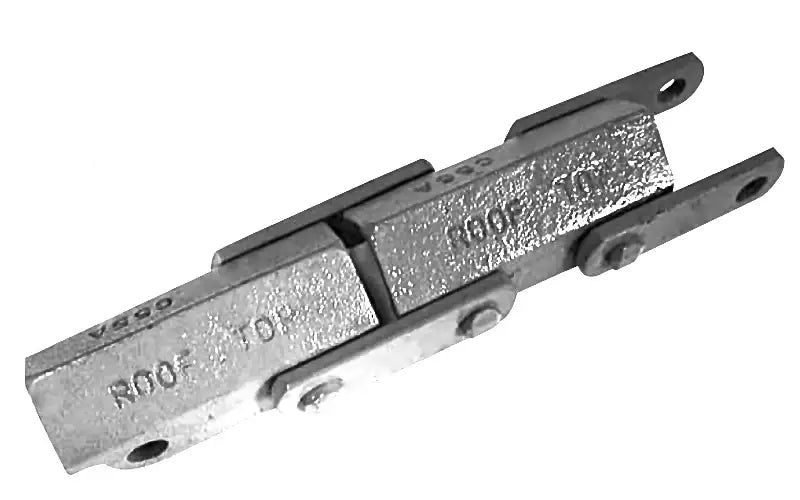

C55D Rooftop Chain

Specialty Chain > Engineering Class Chains > Cast Combination Chain > C55 Combination Chain

C55D Rooftop Chain

Note: Custom Cut to Length Chain Also Available
SKU: C55D-ROOFTOP-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714976711023" , "metafield_value":""}]
C55D Rooftop Chain Features
C55D Rooftop Chain Specifications
C55D rooftop chain is categorized as a cast combination chain. This C55D rooftop chain is a high quality, durable, and long lasting conveyor chain that is manufactured using high quality components. C55D rooftop chain is used in a wide range of applications including; bucket elevators, flight conveyors, forest products, grain handling, sugar processing, and more! C55D rooftop chain links are manufactured to be symmetrical which means that this chain can travel in either direction. This C55D rooftop chain has the capability of conveying both abrasive and non-abrasive materials which greatly broadens its range of applications that it can be used in. This chain is supplied as riveted construction furnished with pin heads all on the same side. We also offer a full line of C55D rooftop chain sprockets and other accessories. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:
C55D Rooftop Chain
  • Chain Type: C55D Rooftop Chain
  • Pitch: 1.631"
  • Pin Diameter (D): 0.375"
  • Sidebar Thickness (T): 0.190"
  • Barrel Diameter (Q): 0.720"
  • Maximum Allowable Sprocket Face (S): 0.690"
  • Overall Height (P): 1.250"
  • Overall Width Riveted (A): 2.000"
  • Head Of Pin To Center Line (C): 1.000"
  • Overall Length Of Barrel (X): 1.250"
  • Sidebar Height (H): 0.880"
  • Height Of Shoulder (F): 0.880"
  • Center Of Pin To Top (J): 0.880"
  • Style Of Top: Peaked
  • Links Per 10ft: 74
  • Weight Per Foot: 3.2 LBS
  • Ultimate Strength: 117,000 LBS
  • Maximum Working Load: 1,400 LBS
