C55 G19 Attachment Features
C55 G19 Attachment Specifications
C55 G19 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C55 G19 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C55 chain with G19 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

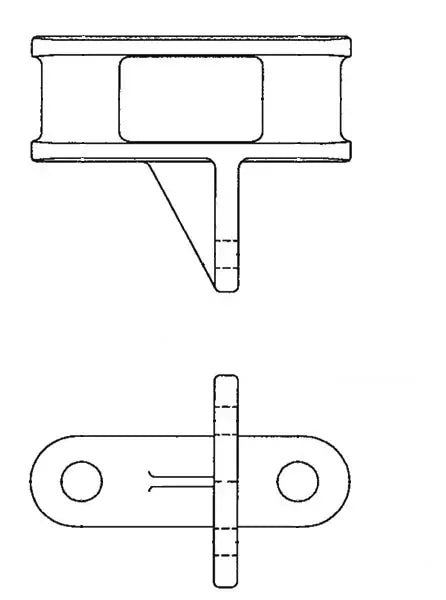

Dimensions:
C55 G19 Attachment
  • Attachment Number: C55 G19
  • Pitch: 1.631"
  • Bolt Diameter: 0.310"
  • Hole Diameter (D): 0.340"
  • Dimension (G): 2.250"
  • Dimension (J): 0.880"
  • Dimension (K): 1.030"
  • Dimension (L): 1.660"
  • Dimension (M): 0.880"
  • Dimension (N): 1.690"
  • Dimension (P): 1.750"
  • Dimension (T): 0.250"
  • Weight: 2.70 LBS/ FT
