C188 G19 Attachment

Specialty Chain > Engineering Class Chains > Cast Combination Chain > C188 Combination Chain

C188 G19 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: C188-G19-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714961506671" , "metafield_value":""}]
C188 G19 Attachment Features
C188 G19 Attachment Specifications
C188 G19 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C188 G19 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C188 chain with G19 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

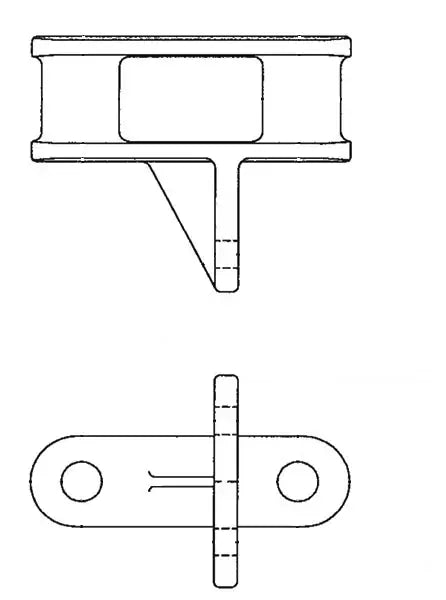

Dimensions:
C188 G19 Attachment
  • Attachment Number: C188 G19
  • Pitch: 2.609"
  • Bolt Diameter: 0.310"
  • Hole Diameter (D): 0.340"
  • Dimension (G): 2.440"
  • Dimension (J): 1.310"
  • Dimension (K): 1.880"
  • Dimension (L): 1.660"
  • Dimension (M): 1.500"
  • Dimension (N): 1.940"
  • Dimension (P): 2.620"
  • Dimension (T): 0.280"
  • Weight: 4.2 LBS/ FT
