C102B K2 Attachment

Specialty Chain > Engineering Class Chains > Cast Combination Chain > C102B Combination Chain

C102B K2 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: C102B-K2-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714957345135" , "metafield_value":""}]
C102B K2 Attachment Features
C102B K2 Attachment Specifications
C102B K2 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C102B K2 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C102B chain with K2 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

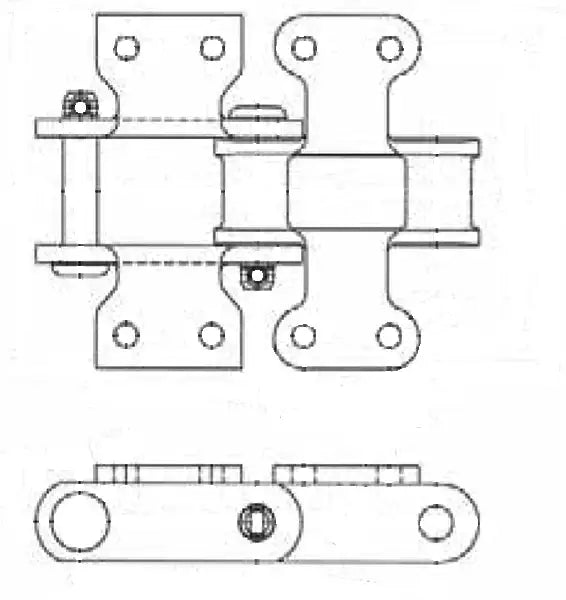

Dimensions:
C102B K2 Attachment
  • Attachment Number: C102B K2
  • Pitch: 4.000"
  • Bolt Diameter: 0.380"
  • Hole Diameter (D): 0.410"
  • Dimension (J): 1.000"
  • Dimension (K): 2.000"
  • Dimension (M): 5.310"
  • Dimension (M1): 1.750"
  • Dimension (R): 2.810"
  • Dimension (R1): 2.620"
  • Dimension (T): 0.220"
  • Dimension (T1): 0.380"
  • Dimension (W): 6.310"
  • Dimension (W1): 6.750"
  • Weight: 8.0 LBS/ FT
