BC34 Bucket Clamp
Note:
Custom Cut to Length Chain Also Available
SKU: BC34-BUCKET-CLAMP
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
BC34 Bucket Clamp Features
BC34 Bucket Clamp Specifications
The BC34 bucket clamp is made for a 34X136CH round link chain and is a form of attachment that allows buckets to be attached to the chain, suiting it for bucket elevating applications. Bucket clamps are only recommended for case-hardened round link chains because they are designed to operate within friction drives and sprocket wheels. The unique BC34 bucket clamp design allows continuous strands to be used with superior operational reliability. The BC34 bucket clamp is not an integral component of the haulage member, just an addition. Furthermore, BC34 clamps can even be used when the base chain is worn. For additional information or a quote on BC34 bucket clamps or round link chains, contact our customer support team, and we will gladly assist you!

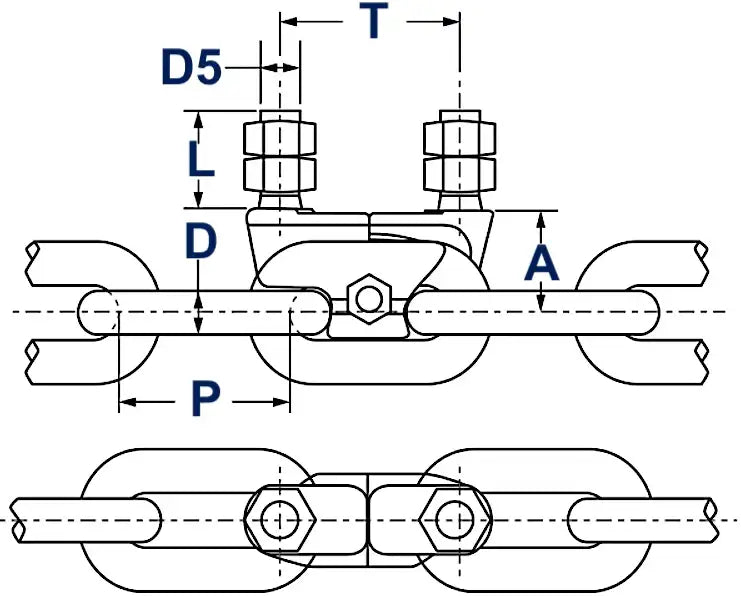

BC34 Bucket Clamp Dimensions
- Part #: BC34
- For Chain Size: 34X136CH
- Dimension (T): 147mm
- Dimension (P): 136mm
- Dimension (D): 34mm
- Dimension (A): 81mm
- Dimension (L): 75mm
- Dimension (D5): M36
- Weight: 7.1 LBS
- Part #: BC34
- For Chain Size: 34X136CH
- Dimension (T): 147mm
- Dimension (P): 136mm
- Dimension (D): 34mm
- Dimension (A): 81mm
- Dimension (L): 75mm
- Dimension (D5): M36
- Weight: 7.1 LBS
