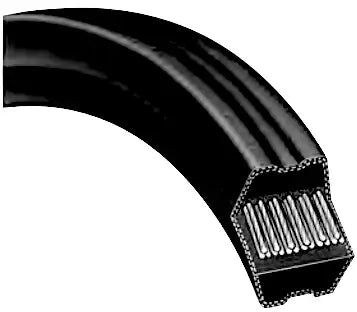

BB69 Belt | Double-Sided BB69 V-Belt - 71.9" Length
Note:
Custom Cut to Length Chain Also Available
SKU: BB69-V-BELT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
BB69 Belt | Double-Sided BB69 V-Belt - 71.9" Length Features
BB69 Belt | Double-Sided BB69 V-Belt - 71.9" Length Specifications
BB69 belts are classified as double-sided BB69 v-belts and are commonly referred to as hex-style belts. This reference is due to the hexagonal shape of the belt; it's designed that way because it can operate on either side of the belt. BB69 v-belts are commonly found in applications where the belt is used with multiple pulleys that must be driven clockwise or counterclockwise around a single or numerous reverse bends. BB69 belts are designed with chords directly at the centre of the belt, creating even torque capabilities on both sides. Our BB69 double-sided belt conforms to ARMP Standards, has a belt length of 71.9", and is precision manufactured from high-grade compounds for the ultimate durability and belt life in any given hex belt application. For additional information or to get a quote on our BB69 belts, contact our customer service team, and we will be happy to assist you!
BB69 Belt Dimensions
- Belt Size: BB69
- Length: 71.9"
- Width: 0.66"
- Height: 0.53"
- Weight: 0.90 LBS
- Compound Material: Natural Rubber (SBR)
- Chord Material: Polyester
- Cover Material: Cotton/ Polyester Blend
- Engineering Standard: ARPM
- Belt Size: BB69
- Length: 71.9"
- Width: 0.66"
- Height: 0.53"
- Weight: 0.90 LBS
- Compound Material: Natural Rubber (SBR)
- Chord Material: Polyester
- Cover Material: Cotton/ Polyester Blend
- Engineering Standard: ARPM
