B504 Block Chain - Solid

B504 blockchain is manufactured with alternate block links (inside link) and pin links (outside link). Though it has a simple design it is a highly effective chain and is used in applications all around the world. Specifically, the B-504 block chain is the solid construction style, has a 1" pitch, and has a block width of 0.31". It is intended for use in light-load, low speed conveying systems and has a length tolerance of 0" - 1/16" per foot. To increase the lifespan of B504 chain a chain guide is recommended to be used (which we also supply), this reduces friction and reduces the catenary load on sprockets. For additional information or to get a quote on B504 block chain, sprockets, or chain guide, please contact us.

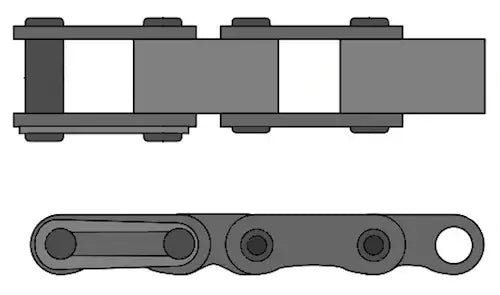

B504 Block chain Dimensions

• Size: B-504
• Style: Solid
• Pitch: 1.00"
• Block Width (W): 0.31"
• Pin to Head Center Line (A): 0.28"
• Pin End to Center Line (B): 0.33"
• Overall Chain Width (C): 0.56"
• Overall Connecting Link Width: 0.61"
• Link Plate Thickness (T): 0.08"
• Pin Diameter (E): 0.19"
• Recommended Maximum Working Load (0-100 FPS): 230 LBS
• Recommended Maximum Working Load (101-200 FPS): 209 LBS
• Recommended Maximum Working Load (201-300 FPS): 164 LBS
• Average Weight Per Foot: 0.4 LBS
