88XH Sand Spreader Chain

88XH Sand Spreader Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 88XH-SAND-SPREADER-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

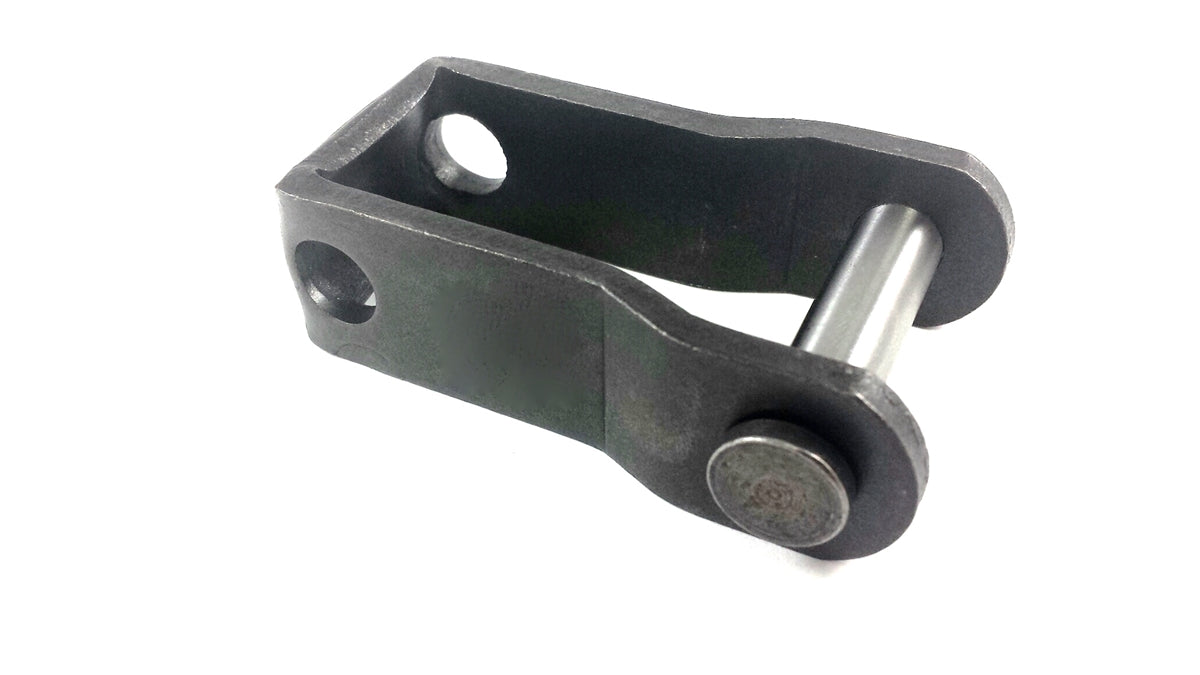

88XH Pintle Chain Chain Connecting Link (Master Link)
88XH Pintle Chain Chain Connecting Link (Master Link)
Login
88XH Pintle Chain Pin
88XH Pintle Chain Pin
Login
View full details
Description
Specification


We offer 88XH sand spreader chain pre-assembled with attachments in any configuration needed, or can also supply the complete 88XH chain sand spreader assembly consisting of attachments and bar flights assembled per request. USA Roller Chain & Sprockets can do this all within a quick lead-time and at a great price! Additionally, we can supply high quality sprockets, extra connecting links, and pins for this chain. For pricing and availability on 88XH sand spreader chain contact us.

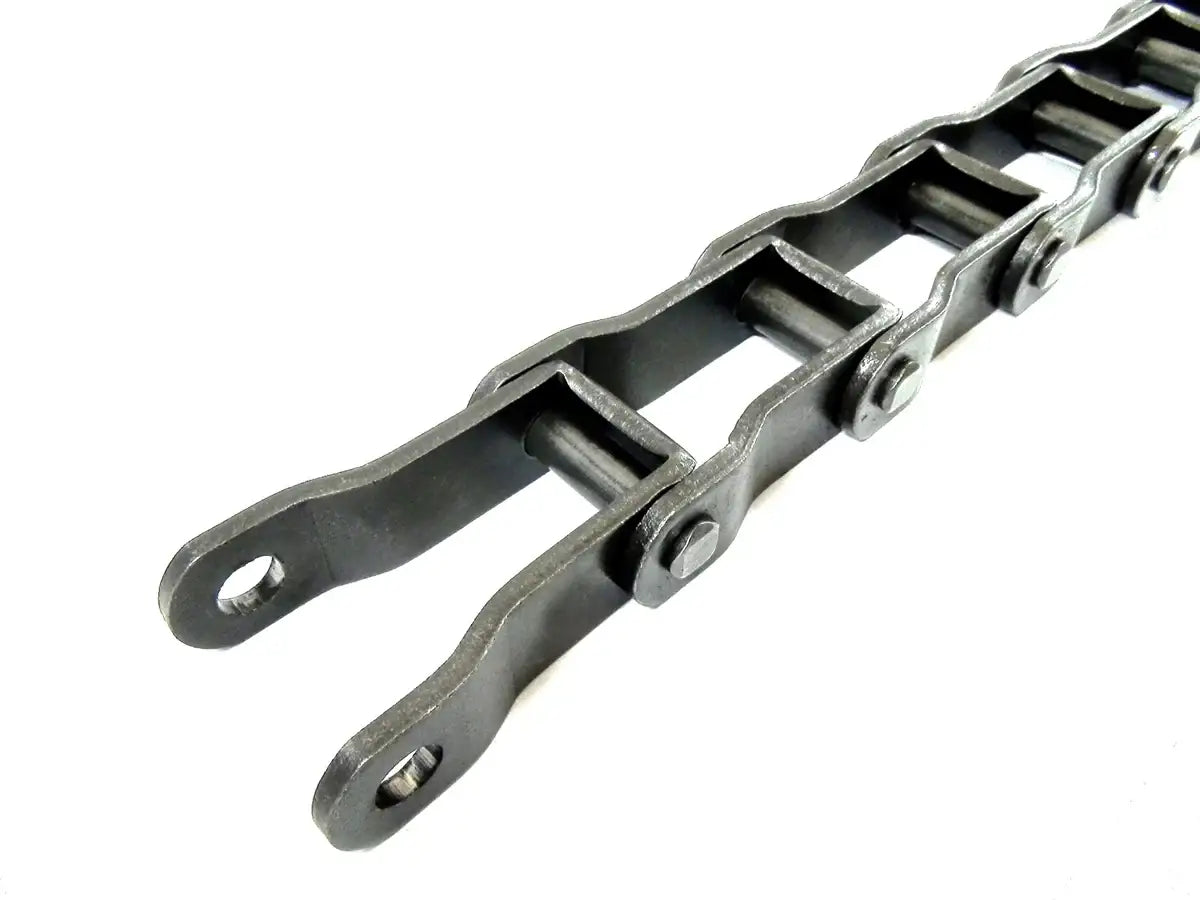

88XH Sand Spreader Chain Dimensions


88XH Sand Spreader Chain
  • Chain Size: 88XH
  • Pitch (P): 2.609"
  • Ultimate Strength: 38,000lbs
  • Side Bar Height (B): 1.125"
  • Side Bar Thickness (C): 0.250"
  • Rivet Diameter (D): 0.500"
  • Overall Width (E): 2.842"
  • Maximum Sprocket Thickness (F): 1.000"
  • Weight Per 10ft: 33.2lbs


88XH Sand Spreader Chain88XH Sand Spreader Chain

Feature

  • Tensile Strength: 38,000lbs
  • Fully Heat Treated
  • Quad Staked Pins
  • Open Barrel Design To Eliminate Chain Freezing
  • We Offer A Full Line of Sprockets & Attachments For This Chain
Featured image
  • Chain Size: 88XH
  • Pitch (P): 2.609"
  • Ultimate Strength: 38,000lbs
  • Side Bar Height (B): 1.125"
  • Side Bar Thickness (C): 0.250"
  • Rivet Diameter (D): 0.500"
  • Overall Width (E): 2.842"
  • Maximum Sprocket Thickness (F): 1.000"
  • Weight Per 10ft: 33.2lbs
