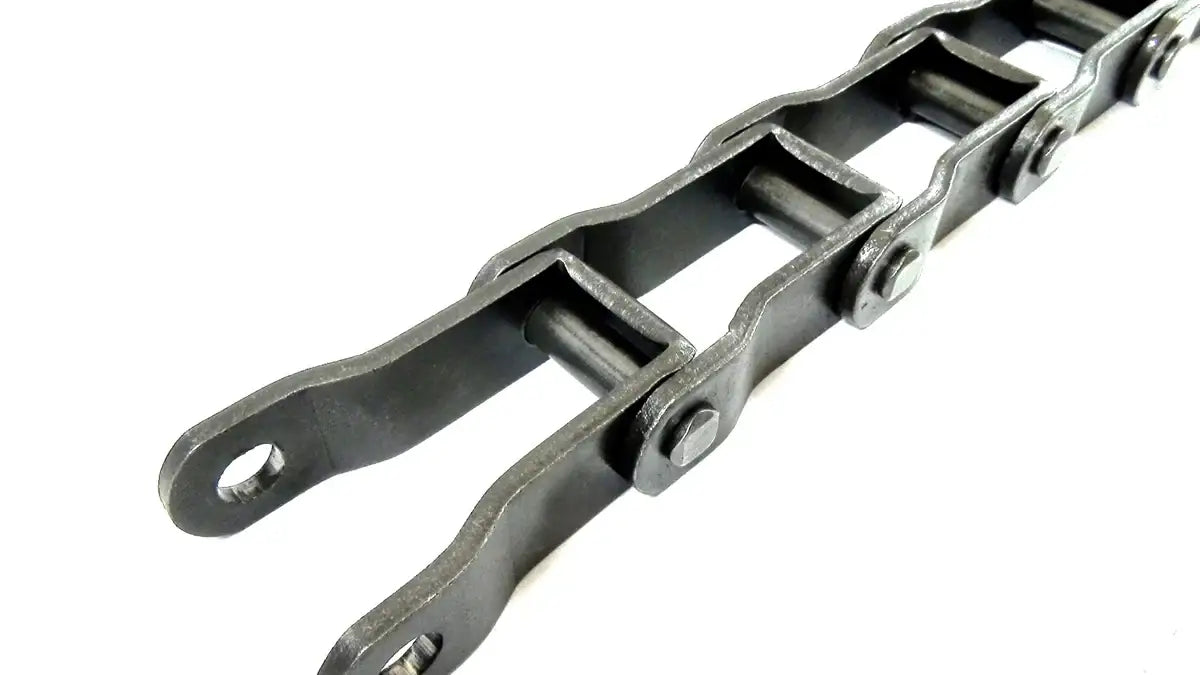

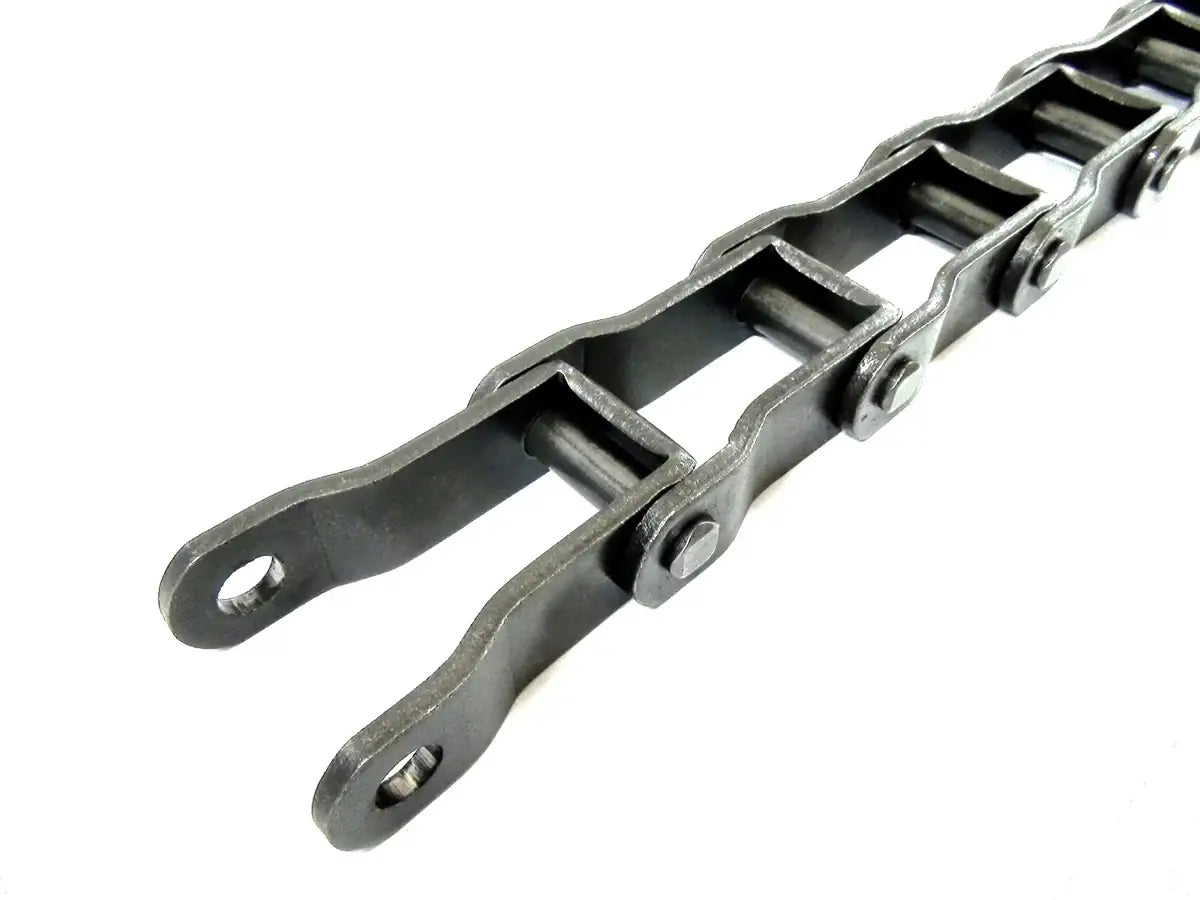

88K Sand Spreader Chain

88K Sand Spreader Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 88K-SAND-SPREADER-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
88K Pintle Chain Chain Connecting Link (Master Link)
88K Pintle Chain Chain Connecting Link (Master Link)
$39.99
Login
88K Pintle Chain Pin
88K Pintle Chain Pin
$14.99
Login
View full details
Description
Specification


We offer 88K sand spreader chain pre-assembled with attachments in any configuration needed, or can also supply the complete 88K chain sand spreader assembly consisting of attachments and bar flights assembled per request. USA Roller Chain & Sprockets can do this all within a quick lead-time and at a great price! Additionally, we can supply high quality sprockets, extra connecting links, and pins for this chain. For pricing and availability on 88K sand spreader chain contact us.

88K Sand Spreader Chain Dimensions


88K Sand Spreader Chain
  • Chain Size: 88K
  • Pitch (P): 2.609"
  • Ultimate Strength: 24,500lbs
  • Side Bar Height (B): 1.063"
  • Side Bar Thickness (C): 0.200"
  • Rivet Diameter (D): 0.437"
  • Overall Width (E): 2.315"
  • Maximum Sprocket Thickness (F): 1.000"
  • Weight Per 10ft: 23 lbs


88K Sand Spreader Chain88K Sand Spreader Chain

Feature

  • Tensile Strength: 24,500lbs
  • Fully Heat Treated
  • Quad Staked Pins
  • Open Barrel Design To Eliminate Chain Freezing
  • We Offer A Full Line of Sprockets & Attachments For This Chain
Featured image
  • Chain Size: 88K
  • Pitch (P): 2.609"
  • Ultimate Strength: 24,500lbs
  • Side Bar Height (B): 1.063"
  • Side Bar Thickness (C): 0.200"
  • Rivet Diameter (D): 0.437"
  • Overall Width (E): 2.315"
  • Maximum Sprocket Thickness (F): 1.000"
  • Weight Per 10ft: 23 lbs
