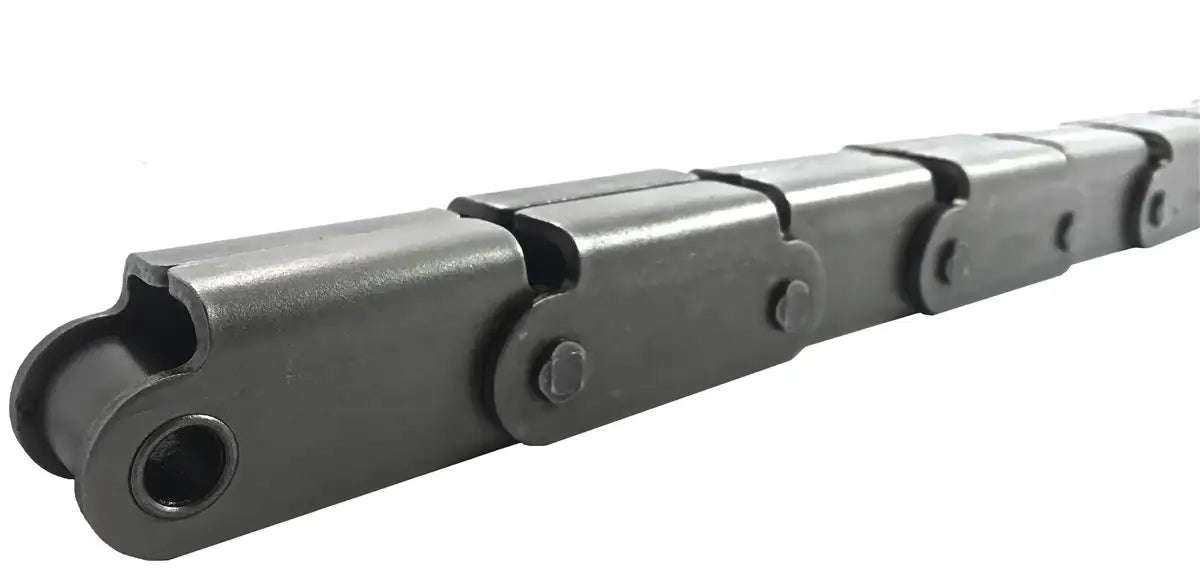

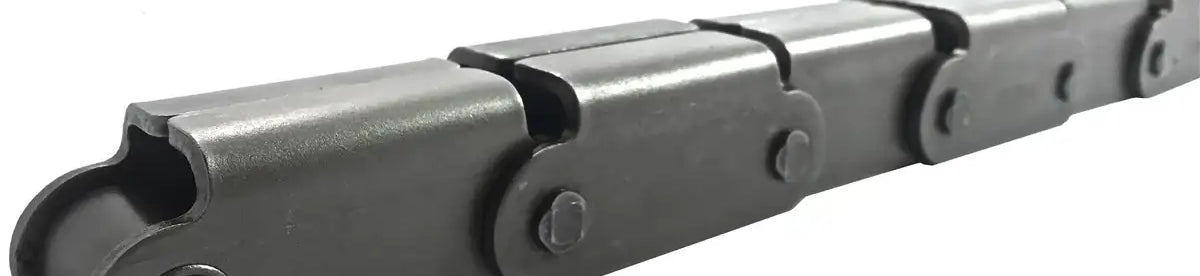

81X Camelback Chain

81X Camelback chain is also commonly referred to as a rooftop chain. It implements an F1 type attachment to create a flat surface on top of the chain which can be used to effectively convey product on top of the chain. Common applications for this chain include forestry, agriculture, poultry, grain, and many more conveying applications. What separates our camelback 81X chain from others is the use of heat-treated and shot peened components, this increases the strength and durability of the chain. We also use a solid bushing solid roller (SBR) design with our 81X series chains which have been proven to increase the performance and lifespan of a chain. Typically 81X camelback chains are supplied in 10ft boxes but alternative lengths are available upon request.

81X Camelback Chain Dimensions

• Chain Size: 81X Camelback
• Pitch (P): 2.609"
• Roller Diameter (R): 0.905"
• Pin Diameter (D): 0.500"
• Overall Width (F): 1.937"
• Roller Width: 1-3/8"
• Plate Height (B): 1.500"
• Plate Thickness (C): 5/32"
• Roof Width (E): 1.750"
• Weight Per Foot: 3.3 LBS

We also supply a complete line of high-quality 81X sprockets. For additional information or to get a quote please contact us.
